3013584

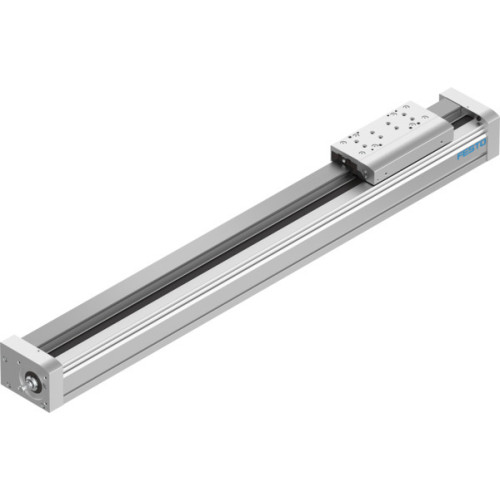

EGC-120-800-BS-25P-KF-0H-ML-GK Ball screw axis

Manufacturer's No: EGC-120-800-BS-25P-KF-0H-ML-GK     Manufacturer: Festo
EGC-120-800-BS-25P-KF-0H-ML-GK Ball screw axis

Availability On Request

£2,790.06
  • Working stroke: 800 mm
  • Size: 120
  • Spindle diameter: 25 mm
  • Spindle pitch: 25 mm/U
  • Max. acceleration: 15 m/s²
  • Max. speed: 1.5 m/s
  • Repetition accuracy: ±0.02 mm
  • Max. force Fy: 6890 N
  • Max. force Fz: 6890 N
  • Max. moment My: 380 Nm

Read more

  • Max. moment Mz: 380 Nm
  • Max. feed force Fx: 1500 N
  • Torsional mass moment of inertia It: 1430000 kg·cm²
  • Reference service life: 5000 km
  • Material: Wrought aluminium alloy, Anodised, Steel
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EGC-120-800-BS-25P-KF-0H-ML-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£2,790.06
