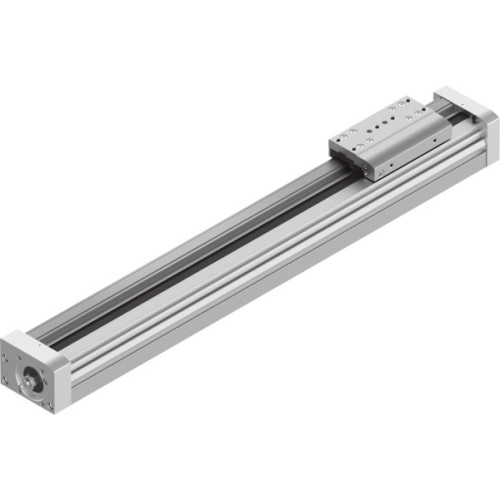

EGC-70-400-BS-10P-KF-0H-ML-GK Ball screw axis

Manufacturer's No: EGC-70-400-BS-10P-KF-0H-ML-GK     Manufacturer: Festo
EGC-70-400-BS-10P-KF-0H-ML-GK Ball screw axis

Availability Back Order

£1,655.00
  • Type: Ball screw axis
  • Model: EGC-70-400-BS-10P-KF-0H-ML-GK
  • Working Stroke: 400 mm
  • Size: 70
  • Spindle Diameter: 12 mm
  • Spindle Pitch: 10 mm/U
  • Guide: Recirculating ball bearing guide
  • Design: Electromechanical linear axis with ball screw
  • Motor Type: Stepper motor, Servo motor
  • Max. Acceleration: 15 m/s²

Read more

  • Max. Speed: 0.5 m/s
  • Repetition Accuracy: ±0.02 mm
  • Duty Cycle: 100%
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP40
  • Ambient Temperature: -10°C to 60°C
  • Max. Force: 1850 N (Fy, Fz)
  • Max. Total Axis Force: 1850 N (Fy, Fz)
  • Max. Moment: 51 Nm (My, Mz)
  • Max. Total Axis Moment: 51 Nm (My, Mz)
  • Max. Radial Force at Drive Shaft: 220 N
  • Max. Feed Force: 400 N
  • Torsional Mass Moment of Inertia: 88000 Y12
  • Mass Moment of Inertia per Metre of Stroke: 0.142 kgm²
  • Feed Constant: 10 Y13
  • Reference Service Life: 5000 km
  • Materials: Wrought aluminium alloy, Anodised, Steel
  • RoHS-compliant materials

Accessories

ZBS-5 Centring pin

Product Code - 150928
Price £1.59
Back Order


Product

Manufacturer Material ID -
EGC-70-400-BS-10P-KF-0H-ML-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability Back Order

£1,655.00
