3012494

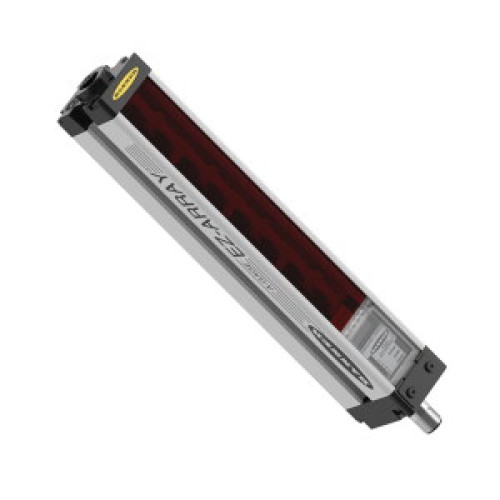

Measuring Light Screen, Receiver

Manufacturer's No: EA5R1800PUXMODSRLCQ     Manufacturer: Turck Banner
Measuring Light Screen, Receiver

Availability On Request

£1,255.14
  • Measuring Light Screen
  • Receiver with Max. range of 1500 mm
  • Scan field of 1800 mm
  • Resolution of 5 mm
  • Max. range of 4 m
  • Operating voltage: 15-30 VDC
  • Protection class: IP65

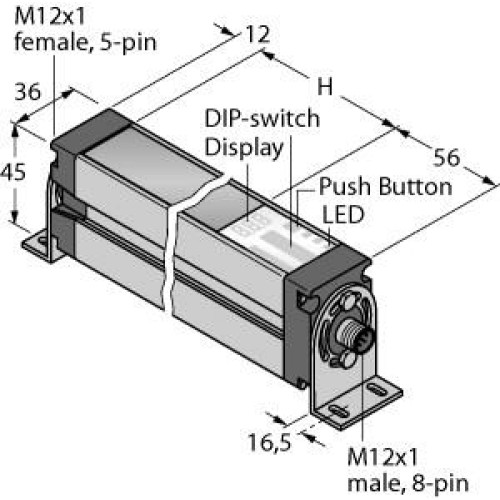

  • Male M12 × 1, 8-pin connector
  • Female M12 × 1, 5-pin connector
  • 2x PNP switching output

Read more

  • 2x analog outputs: 0-10 V
  • Modbus RTU communication via RS485
  • Supports baud rates: 9600, 19200, 38400, 57600, and 115200 Bd
  • Low contrast ratio for clear object detection
  • Includes 2 × EZA-MBK-11 brackets in delivery


Product

Manufacturer Material ID -
EA5R1800PUXMODSRLCQ
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -
Height of sensor -
1878 Millimetre
Length of sensor -
45.2 Millimetre
Reaction time -
26.5 Millisecond
Resolution of the light curtain -
5 Millimetre
Safety field height -
1800 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
Turck Banner

Availability On Request

£1,255.14
