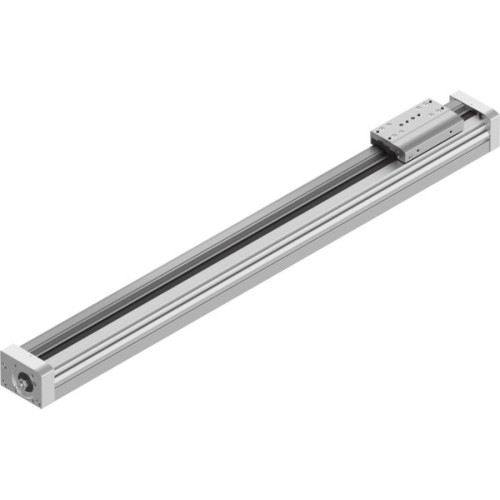

EGC-70-600-BS-10P-KF-0H-ML-GK Ball screw axis

Manufacturer's No: EGC-70-600-BS-10P-KF-0H-ML-GK     Manufacturer: Festo
EGC-70-600-BS-10P-KF-0H-ML-GK Ball screw axis

Availability On Request

£1,801.43
  • Type: Ball screw axis
  • Model: EGC-70-600-BS-10P-KF-0H-ML-GK
  • Working Stroke: 600 mm
  • Size: 70
  • Spindle Diameter: 12 mm
  • Spindle Pitch: 10 mm/U
  • Max. Acceleration: 15 m/s²
  • Max. Speed: 0.5 m/s
  • Repetition Accuracy: ±0.02 mm
  • Max. Force Fy: 1850 N

Read more

  • Max. Force Fz: 1850 N
  • Max. Moment My: 51 Nm
  • Max. Radial Force at Drive Shaft: 220 N
  • Torsional Mass Moment of Inertia It: 88000 kg·cm²
  • Reference Service Life: 5000 km
  • Material: Wrought aluminium alloy, Anodised, Steel


Product

Manufacturer Material ID -
EGC-70-600-BS-10P-KF-0H-ML-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£1,801.43
