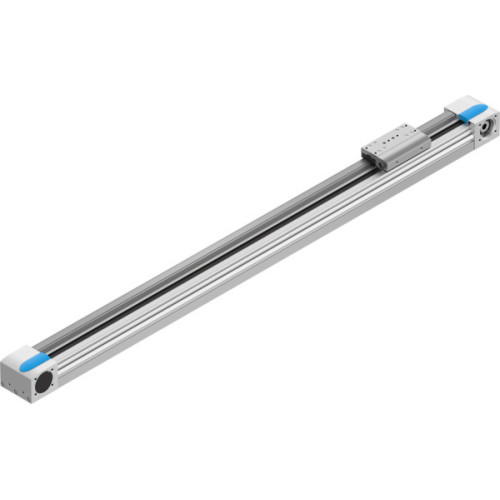

EGC-70-800-TB-KF-0H-GK Toothed belt axis

Manufacturer's No: EGC-70-800-TB-KF-0H-GK     Manufacturer: Festo
EGC-70-800-TB-KF-0H-GK Toothed belt axis

Availability On Request

£1,386.96
  • Type: Toothed belt axis EGC-70-800-TB-KF-0H-GK
  • Design: Electromechanical linear axis with toothed belt
  • Guide: Recirculating ball bearing guide
  • Motor Type: Stepper motor, Servo motor
  • Effective Diameter of Drive Pinion: 24.83 mm
  • Working Stroke: 800 mm
  • Size: 70
  • Max. Acceleration: 50 m/s²
  • Max. Speed: 5 m/s
  • Repetition Accuracy: ±0.08 mm

Read more

  • Duty Cycle: 100%
  • LABS (PWIS) Conformity: VDMA24364 zone III
  • Degree of Protection: IP40
  • Ambient Temperature: -10°C to 60°C
  • Max. Force Fy: 1850 N, Fz: 1850 N
  • Max. Idle Running Transfer Resistance: 14.5 N
  • Max. Moments: Mx: 16 Nm, My: 51 Nm, Mz: 51 Nm
  • Max. Feed Force Fx: 100 N
  • Torsional Mass Moment of Inertia: 240000 Y12
  • Material: End Cap - Wrought aluminium alloy, Anodised
  • Material: Profile - Wrought aluminium alloy, Anodised
  • Material: Drive Cover - Wrought aluminium alloy, Anodised
  • Material: Guide Slide, Guide Rail - Steel
  • Material: Pulleys - High-alloy stainless steel
  • Material: Slide - Wrought aluminium alloy, Anodised
  • Material: Toothed Belt Clamping Piece - Nickel-plated
  • Material: Toothed Belt - Polychloroprene with glass filament and nylon coating


Product

Manufacturer Material ID -
EGC-70-800-TB-KF-0H-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£1,386.96
