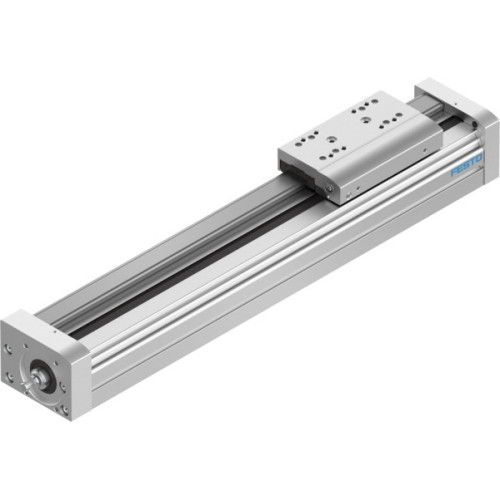

EGC-80-300-BS-10P-KF-0H-ML-GK Ball screw axis

Manufacturer's No: EGC-80-300-BS-10P-KF-0H-ML-GK     Manufacturer: Festo
EGC-80-300-BS-10P-KF-0H-ML-GK Ball screw axis

Availability On Request

£1,652.04
  • Type: Ball screw axis EGC-80-300-BS-10P-KF-0H-ML-GK
  • Working Stroke: 300 mm
  • Size: 80
  • Spindle Diameter: 15 mm
  • Spindle Pitch: 10 mm/U
  • Design: Electromechanical linear axis with ball screw
  • Motor Type: Stepper motor, Servo motor
  • Guide: Recirculating ball bearing guide
  • Max. Acceleration: 15 m/s²
  • Max. Speed: 0.5 m/s

Read more

  • Repetition Accuracy: ±0.02 mm
  • Duty Cycle: 100%
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP40
  • Ambient Temperature: -10°C to 60°C
  • Max. Force: 3050 N (Fy, Fz)
  • Max. Total Axis Force: 3050 N (Fy, Fz)
  • Max. Moment: 97 Nm (My, Mz)
  • Max. Total Axis Moment: 97 Nm (My, Mz)
  • Max. Radial Force at Drive Shaft: 250 N
  • Max. Feed Force: 650 N
  • Torsional Mass Moment of Inertia: 255000 Y12
  • Mass Moment of Inertia JH per Metre of Stroke: 0.346 kgm²
  • Feed Constant: 10 Y13
  • Reference Service Life: 5000 km
  • Material: Wrought aluminium alloy, Anodised (end cap, driver, profile, drive cover)
  • Material: Steel (guide slide, guide rail)
  • Material: Wrought aluminium alloy, Anodised (slide)
  • Material: Steel (spindle nut, spindle)
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EGC-80-300-BS-10P-KF-0H-ML-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
