575832

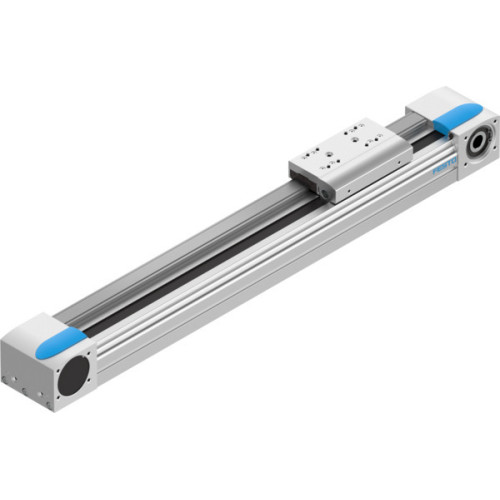

EGC-80-400-TB-KF-0H-GK Toothed belt axis

Manufacturer's No: EGC-80-400-TB-KF-0H-GK     Manufacturer: Festo
EGC-80-400-TB-KF-0H-GK Toothed belt axis

Availability Back Order

£1,420.65
  • Type: Toothed belt axis EGC-80-400-TB-KF-0H-GK
  • Design: Electromechanical linear axis with toothed belt
  • Drive Pinion Diameter: 28.65 mm
  • Working Stroke: 400 mm
  • Size: 80
  • Max. Acceleration: 50 m/s²
  • Max. Speed: 5 m/s
  • Repetition Accuracy: ±0.08 mm
  • Max. Force: 3050 N (Fy and Fz)
  • Max. Moment: 97 Nm (My and Mz)

Read more

  • Max. Feed Force: 350 N
  • Torsional Mass Moment of Inertia: 551000 Y12
  • Material: Wrought aluminium alloy, anodised, steel, high-alloy stainless steel, polychloroprene with glass filament and nylon coating
  • LABS (PWIS) Conformity: VDMA24364 zone III
  • Degree of Protection: IP40
  • Ambient Temperature: -10°C to 60°C
  • Reference Service Life: 5000 km
  • Note: RoHS-compliant materials

Accessories

ZBH-9-B Centring sleeve

Product Code - 8137184
Price £1.59
Back Order


Product

Manufacturer Material ID -
EGC-80-400-TB-KF-0H-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability Back Order

£1,420.65
