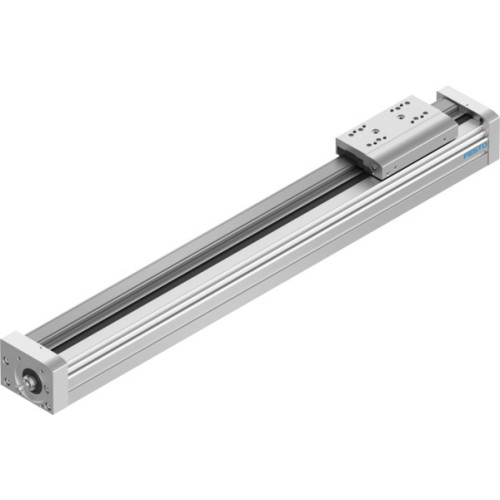

EGC-80-500-BS-20P-KF-0H-ML-GK Ball screw axis

Manufacturer's No: EGC-80-500-BS-20P-KF-0H-ML-GK     Manufacturer: Festo
EGC-80-500-BS-20P-KF-0H-ML-GK Ball screw axis

Availability On Request

£1,780.93
  • Type: Ball screw axis EGC-80-500-BS-20P-KF-0H-ML-GK
  • Working Stroke: 500 mm
  • Size: 80
  • Spindle Diameter: 15 mm
  • Spindle Pitch: 20 mm/U
  • Guide: Recirculating ball bearing guide
  • Motor Type: Stepper and Servo
  • Max. Acceleration: 15 m/s²
  • Max. Speed: 1 m/s
  • Repetition Accuracy: ±0.02 mm

Read more

  • Duty Cycle: 100%
  • Conformity: VDMA24364-B2-L
  • Protection: IP40
  • Temperature Range: -10°C to 60°C
  • Max. Forces: Fy 3050 N, Fz 3050 N
  • Max. Moments: Mx 36 Nm, My 97 Nm, Mz 97 Nm
  • Max. Radial Force at Drive Shaft: 250 N
  • Max. Feed Force: 650 N
  • Torsional Mass Moment of Inertia: 255000 Y12
  • Material: Aluminum alloy, Anodised, Steel
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EGC-80-500-BS-20P-KF-0H-ML-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
