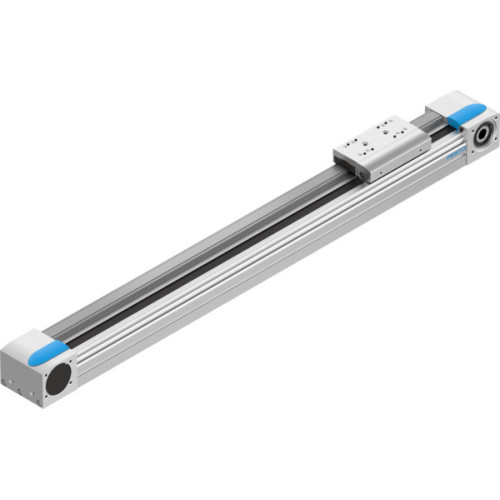

EGC-80-600-TB-KF-0H-GK Toothed belt axis

Manufacturer's No: EGC-80-600-TB-KF-0H-GK     Manufacturer: Festo
EGC-80-600-TB-KF-0H-GK Toothed belt axis

Availability Back Order

£1,511.46
  • Type: Toothed belt axis
  • Model: EGC-80-600-TB-KF-0H-GK
  • Drive Pinion Diameter: 28.65 mm
  • Working Stroke: 600 mm
  • Size: 80
  • Toothed-belt Stretch: 0.24%
  • Max. Acceleration: 50 m/s²
  • Max. Speed: 5 m/s
  • Repetition Accuracy: ±0.08 mm
  • Duty Cycle: 100%

Read more

  • LABS (PWIS) Conformity: VDMA24364 zone III
  • IP Protection Rating: IP40
  • Ambient Temperature Range: -10°C to 60°C
  • Max. Force: 3050 N
  • Max. Moments: Mx: 36 Nm, My: 97 Nm, Mz: 97 Nm
  • Max. Feed Force: 350 N
  • Torsional Mass Moment of Inertia: 551000 Y12
  • Material: End Cap & Profile - Wrought Aluminium Alloy, Anodised; Guide Slide & Rail - Steel; Pulleys - High-alloy Stainless Steel; Slide - Wrought Aluminium Alloy, Anodised; Toothed Belt Clamping Piece - Stainless Steel Casting; Toothed Belt - Polychloroprene with Glass Filament and Nylon Coating

Accessories

ZBH-9-B Centring sleeve

Product Code - 8137184
Price £1.59
Back Order


Product

Manufacturer Material ID -
EGC-80-600-TB-KF-0H-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
Festo

Availability Back Order

£1,511.46
