3013538

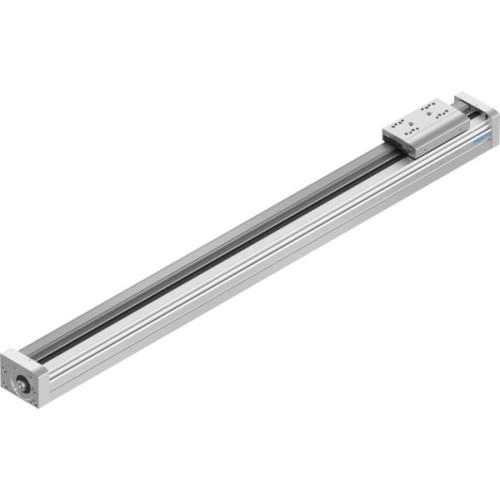

EGC-80-800-BS-10P-KF-0H-ML-GK Ball screw axis

Manufacturer's No: EGC-80-800-BS-10P-KF-0H-ML-GK     Manufacturer: Festo
EGC-80-800-BS-10P-KF-0H-ML-GK Ball screw axis

Availability On Request

£1,974.25
  • Type: Ball screw axis
  • Model: EGC-80-800-BS-10P-KF-0H-ML-GK
  • Working Stroke: 800 mm
  • Size: 80
  • Spindle Diameter: 15 mm
  • Spindle Pitch: 10 mm/U
  • Guide: Recirculating ball bearing guide
  • Design: Electromechanical linear axis with ball screw
  • Motor Type: Stepper motor, Servo motor
  • Max. Acceleration: 15 m/s²

Read more

  • Max. Speed: 0.5 m/s
  • Repetition Accuracy: ±0.02 mm
  • Duty Cycle: 100%
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP40
  • Ambient Temperature: -10°C to 60°C
  • Max. Force: 3050 N
  • Max. Moment: 97 Nm
  • Max. Radial Force at Drive Shaft: 250 N
  • Max. Feed Force: 650 N
  • Torsional Mass Moment of Inertia: 255000 kg·cm²
  • Reference Service Life: 5000 km
  • Materials: Wrought aluminium alloy, Anodised, Steel
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EGC-80-800-BS-10P-KF-0H-ML-GK
Net Weight -

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£1,974.25
