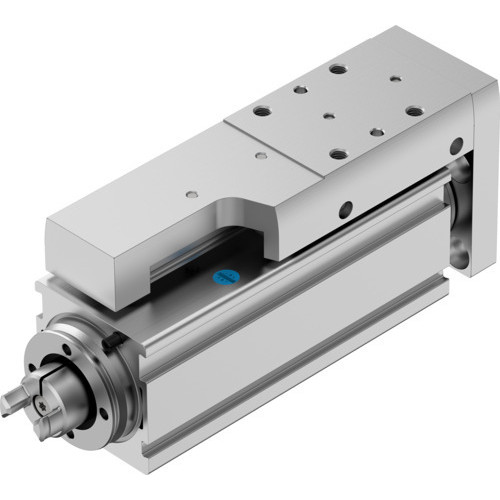

EGSC-BS-KF-25-25-6P Mini slide

Manufacturer's No: EGSC-BS-KF-25-25-6P     Manufacturer: Festo
EGSC-BS-KF-25-25-6P Mini slide

Availability On Request

£568.50
  • Mini slide with a working stroke of 25mm and a size of 25
  • Spindle diameter: 6mm with a spindle pitch of 6 Y13
  • Electric mini slide design with ball screw drive
  • Motor options: Stepper motor and servo motor
  • Position detection via proximity switch
  • Max. acceleration: 15 m/s², max. rotational speed: 4000 RPM, max. speed: 0.4 m/s
  • Repetition accuracy: ±0.015 mm, duty cycle: 100%
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Cleanroom class: Class 9 according to ISO 14644-1
  • Sound pressure level: 50 dBA, degree of protection: IP40

Read more

  • Ambient temperature range: 0°C to 50°C
  • Dynamic basic load ratings: Fixed bearing - 2810 N, linear guide - 1310 N, ball screw - 1700 N
  • Idle torque at max speed: 0.029 Nm, at min speed: 0.015 Nm
  • Max. forces: Fy and Fz - 669 N, max. radial force at drive shaft: 30 N, max. feed force Fx: 20 N
  • Mass moment of inertia: JH per metre of stroke - 0.01507 kgm², JL per kg of working load - 0.00912 kgm², JO - 0.00144 kgm²
  • Reference service life: 5000 km, maintenance interval: Life-time lubrication
  • Product weight: 223 g, moving mass for 0 mm stroke: 83 g
  • Material composition: Guide slide and rail - Rolled steel, housing, yoke plate, slide - Anodised wrought aluminium alloy, piston rod - High-alloy stainless steel, spindle nut and spindle - Rolled steel


Product

Manufacturer Material ID -
EGSC-BS-KF-25-25-6P
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
