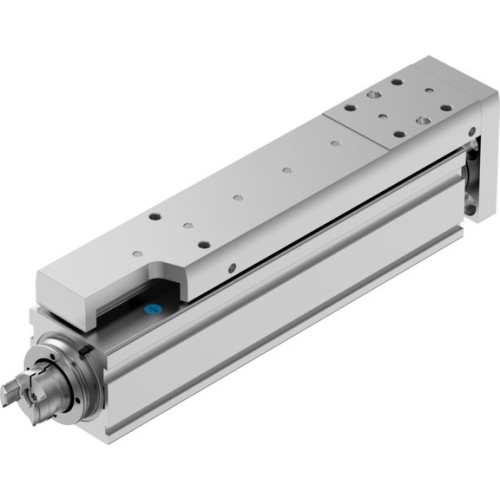

EGSC-BS-KF-32-100-8P Mini slide

Manufacturer's No: EGSC-BS-KF-32-100-8P     Manufacturer: Festo
EGSC-BS-KF-32-100-8P Mini slide

Availability On Request

£521.83
  • Product: EGSC-BS-KF-32-100-8P Mini slide
  • Working stroke: 100 mm
  • Size: 32
  • Spindle diameter: 8 mm
  • Spindle pitch: 8 Y13
  • Design: Electric mini slide with ball screw drive
  • Motor type: Stepper motor, Servo motor
  • Guide: Recirculating ball bearing guide
  • Max. speed: 0.5 m/s
  • Max. acceleration: 15 m/s²

Read more

  • Repetition accuracy: ±0.015 mm
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Cleanroom class: Class 9 according to ISO 14644-1
  • Sound pressure level: 40 dBA
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Max. rotational speed: 3750 RPM
  • Max. force Fy: 991 N, Fz: 991 N
  • Max. moment Mx: 3.4 Nm, My: 3.2 Nm, Mz: 3.2 Nm
  • Static basic load rating ball screw: 3700 N, linear guide: 3880 N
  • Mass moment of inertia: JH per meter of stroke: 0.04477 kgm², JL per kg of working load: 0.01621 kgm², JO: 0.00668 kgm²
  • Product weight: 632 g
  • Material: Guide slide, guide rail: Rolled steel; Housing, yoke plate, slide: Anodised wrought aluminium alloy; Piston rod: High-alloy stainless steel; Spindle nut, spindle: Rolled steel


Product

Manufacturer Material ID -
EGSC-BS-KF-32-100-8P
Net Weight -
0.65kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
Festo

Availability On Request

£521.83
