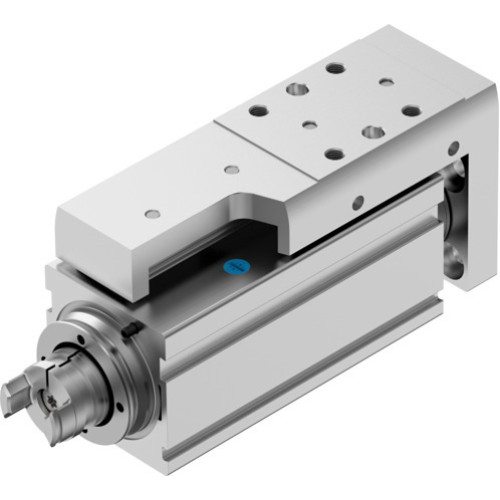

EGSC-BS-KF-32-25-8P Mini slide

Manufacturer's No: EGSC-BS-KF-32-25-8P     Manufacturer: Festo
EGSC-BS-KF-32-25-8P Mini slide

Availability On Request

£506.23
  • Product: EGSC-BS-KF-32-25-8P Mini slide
  • Working Stroke: 25 mm
  • Size: 32
  • Spindle Diameter: 8 mm
  • Spindle Pitch: 8 Y13
  • Max. Speed: 0.5 m/s
  • Max. Acceleration: 15 m/s²
  • Repetition Accuracy: ±0.015 mm
  • Corrosion Resistance Class CRC: 0 (No corrosion stress)
  • Cleanroom Class: Class 9 according to ISO 14644-1

Read more

  • Sound Pressure Level: 40 dBA
  • Degree of Protection: IP40
  • Ambient Temperature: 0°C to 50°C
  • Max. Radial Force at Drive Shaft: 75 N
  • Max. Force Fy and Fz: 991 N
  • Max. Moment Mx, My, Mz: 3.4 NM, 3.2 NM, 3.2 NM
  • Reference Service Life: 5000 km
  • Material: Rolled steel, Anodised wrought aluminium alloy, High-alloy stainless steel


Product

Manufacturer Material ID -
EGSC-BS-KF-32-25-8P
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
