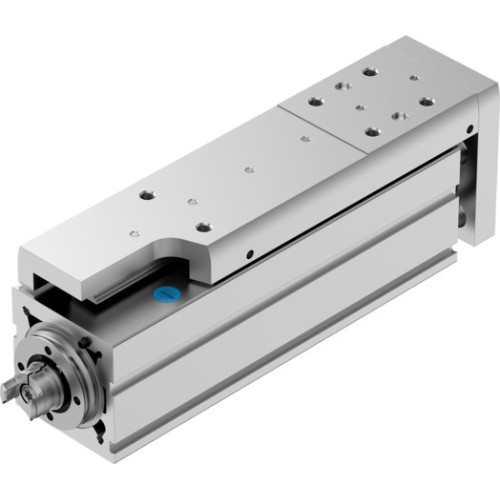

EGSC-BS-KF-45-150-10P Mini slide

Manufacturer's No: EGSC-BS-KF-45-150-10P     Manufacturer: Festo
EGSC-BS-KF-45-150-10P Mini slide

Availability On Request

£621.51
  • Product: EGSC-BS-KF-45-150-10P Mini slide
  • Working Stroke: 150 mm
  • Size: 45
  • Spindle Diameter: 10 mm
  • Spindle Pitch: 10 Y13
  • Design: Electric mini slide with ball screw drive
  • Motor Type: Stepper and Servo
  • Guide: Recirculating ball bearing guide
  • Max. Speed: 0.6 m/s
  • Max. Acceleration: 15 m/s²

Read more

  • Repetition Accuracy: ±0.015 mm
  • Corrosion Resistance: CRC 0 - No corrosion stress
  • Cleanroom Class: Class 9 according to ISO 14644-1
  • Sound Pressure Level: 50 dBA
  • Degree of Protection: IP40
  • Ambient Temperature: 0°C to 50°C
  • Max. Rotational Speed: 3600 RPM
  • Max. Force Fy and Fz: 1314 N
  • Max. Moment Mx, My, and Mz: 8.1 Nm, 7 Nm, 7 Nm respectively
  • Max. Radial Force at Drive Shaft: 180 N
  • Reference Service Life: 5000 km
  • Material: Anodised wrought aluminium alloy, high-alloy stainless steel, rolled steel
  • Mass: Product weight 1551 g, Moving mass for 0 mm stroke 212 g, Additional moving mass per 10 mm stroke 30 g
  • Interface Code: V32
  • Maintenance Interval: Life-time lubrication
  • Mounting: Via female thread, centring sleeve, cylindrical pin, with accessories
  • Material Compliance: RoHS-compliant


Product

Manufacturer Material ID -
EGSC-BS-KF-45-150-10P
Net Weight -
1.79kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
Festo

Availability On Request

£621.51
