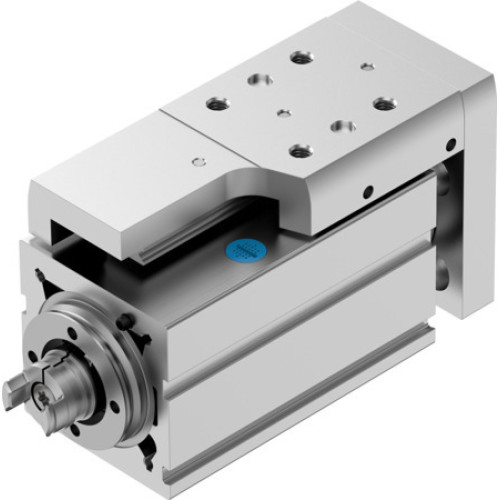

EGSC-BS-KF-45-25-10P Mini slide

Manufacturer's No: EGSC-BS-KF-45-25-10P     Manufacturer: Festo
EGSC-BS-KF-45-25-10P Mini slide

Availability On Request

£586.84
  • Product: EGSC-BS-KF-45-25-10P Mini slide
  • Working stroke: 25 mm
  • Size: 45
  • Spindle diameter: 10 mm
  • Spindle pitch: 10 Y13
  • Design: Electric mini slide with ball screw drive
  • Motor type options: Stepper motor, Servo motor
  • Guide: Recirculating ball bearing guide
  • Max. speed: 0.6 m/s
  • Max. acceleration: 15 m/s²

Read more

  • Repetition accuracy: ±0.015 mm
  • Corrosion resistance class: CRC 0 (No corrosion stress)
  • Cleanroom class: Class 9 according to ISO 14644-1
  • Sound pressure level: 50 dBA
  • Degree of protection: IP40
  • Ambient temperature range: 0°C to 50°C
  • Max. rotational speed: 3600 RPM
  • Max. force Fy: 1314 N, Fz: 1314 N
  • Max. moment Mx: 8.1 Nm, My: 7 Nm, Mz: 7 Nm
  • Max. radial force at drive shaft: 180 N
  • Mass moment of inertia: JH per meter of stroke: 0.13609 kgm², JL per kg of working load: 0.02533 kgm², JO: 0.01363 kgm²
  • Reference service life: 5000 km
  • Material composition:
    • Guide slide & rail: Rolled steel
    • Housing, yoke plate, slide: Anodised wrought aluminium alloy
    • Piston rod: High-alloy stainless steel
    • Spindle nut & spindle: Rolled steel
  • Weight:
    • Product weight: 765 g
    • Moving mass for 0 mm stroke: 212 g
    • Basic weight for 0 mm stroke: 608 g
  • Mounting options: Female thread, centring sleeve, with accessories, cylindrical pin
  • Interface code: V32
  • Maintenance: Life-time lubrication
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EGSC-BS-KF-45-25-10P
Net Weight -
0.85kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
Festo

Availability On Request

£586.84
