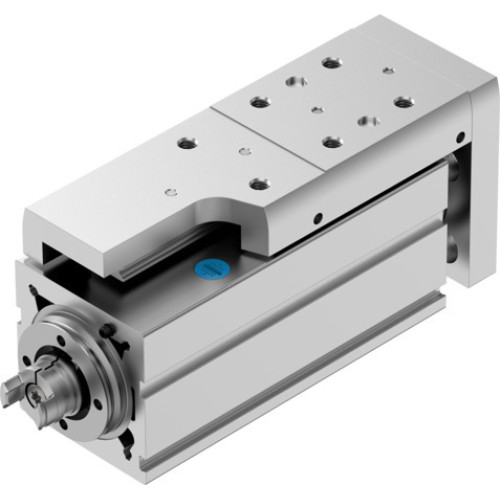

EGSC-BS-KF-45-50-10P Mini slide

Manufacturer's No: EGSC-BS-KF-45-50-10P     Manufacturer: Festo
EGSC-BS-KF-45-50-10P Mini slide

Availability On Request

£593.78
  • Product: EGSC-BS-KF-45-50-10P Mini slide
  • Working Stroke: 50 mm
  • Size: 45
  • Spindle Diameter: 10 mm
  • Spindle Pitch: 10 Y13
  • Max. Speed: 0.6 m/s
  • Repetition Accuracy: ±0.015 mm
  • Max. Acceleration: 15 m/s²
  • Max. Rotational Speed: 3600 RPM
  • Corrosion Resistance Class CRC: 0 (No corrosion stress)

Read more

  • Cleanroom Class: Class 9 according to ISO 14644-1
  • Sound Pressure Level: 50 dBA
  • Degree of Protection: IP40
  • Ambient Temperature: 0°C to 50°C
  • Dynamic Basic Load Rating Fixed Bearing: 7413 N
  • Dynamic Basic Load Rating Linear Guide: 3240 N
  • Dynamic Basic Load Rating Ball Screw: 3200 N
  • Idle Torque at vmax: 0.1 Nm
  • Idle Torque at vmin: 0.03 Nm
  • Max. Force Fy: 1314 N
  • Max. Force Fz: 1314 N
  • Max. Moment Mx: 8.1 Nm
  • Max. Moment My: 7 Nm
  • Max. Moment Mz: 7 Nm
  • Max. Radial Force at Drive Shaft: 180 N
  • Max. Feed Force Fx: 120 N
  • Reference Value Effective Load, Horizontal: 12 kg
  • Reference Value Effective Load, Vertical: 12 kg
  • Static Basic Load Rating Ball Screw: 5900 N
  • Static Basic Load Rating Linear Guide: 5630 N
  • Mass Moment of Inertia JH per Metre of Stroke: 0.13609 kgm²
  • Mass Moment of Inertia JL per kg of Working Load: 0.02533 kgm²
  • Mass Moment of Inertia JO: 0.01363 kgm²
  • Feed Constant: 10 Y13
  • Reference Service Life: 5000 km
  • Maintenance Interval: Life-time lubrication
  • Moving Mass for 0 mm Stroke: 212 g
  • Product Weight: 922 g
  • Material Guide Slide: Rolled Steel
  • Material Guide Rail: Rolled Steel
  • Material Housing: Anodised Wrought Aluminium Alloy
  • Material Yoke Plate: Anodised Wrought Aluminium Alloy
  • Material Piston Rod: High-alloy Stainless Steel
  • Material Slide: Anodised Wrought Aluminium Alloy
  • Material Spindle Nut: Rolled Steel
  • Material Spindle: Rolled Steel


Product

Manufacturer Material ID -
EGSC-BS-KF-45-50-10P
Net Weight -
1.08kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
