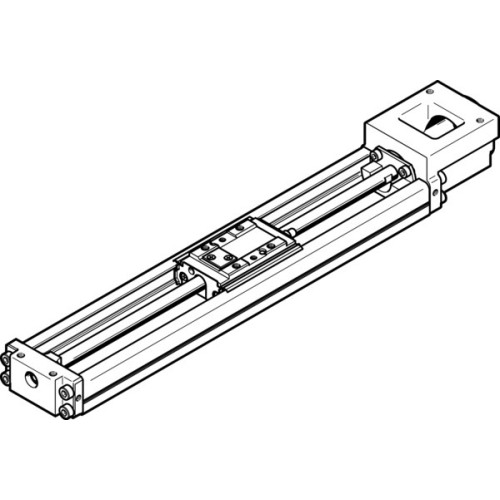

EGSK-20-75-1P Electrical slide

Manufacturer's No: EGSK-20-75-1P     Manufacturer: Festo
EGSK-20-75-1P Electrical slide

Availability On Request

£894.87
  • Working stroke: 75 mm
  • Size: 20
  • Reversing backlash: <= 20 µm
  • Spindle diameter: 6 mm
  • Spindle pitch: 1 mm/U
  • Max. acceleration: 10 m/s²
  • Max. speed: 0.19 m/s
  • Repetition accuracy: ±0.01 mm
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III

Read more

  • Degree of protection: IP10
  • Ambient temperature: 0°C to 40°C
  • Dynamic basic load rating:
    • Fixed bearing: 1000 N
    • Linear guide: 2849 N
    • Ball screw: 660 N
  • Max. drive torque: 0.011 Nm
  • Max. forces:
    • Fy: 1389 N
    • Fz: 1389 N
  • Max. moments:
    • Mx: 18.1 Nm
    • My: 5.8 Nm
    • Mz: 5.8 Nm
  • Max. feed force: 69 N
  • Frictional torque independent of load: 0.005 Nm
  • Static basic load rating:
    • Ball screw: 1170 N
    • Linear guide: 6300 N
  • Mass moment of inertia:
    • JH per meter of stroke: 0.01 kgm²
    • JO: 0.00087 kgm²
  • Feed constant: 1 mm/U
  • Reference service life: 500 km
  • Moving mass: 64 g
  • Weight of slide: 583 g
  • Type of mounting: Via female thread and dowel pin
  • Materials:
    • End cap: Die-cast aluminum, coated
    • Profile: High-alloy stainless steel
    • Drive cover: Die-cast aluminum, coated
    • Slide: Steel
    • Spindle nut: Steel
    • Spindle: Steel
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
EGSK-20-75-1P
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
31251511
