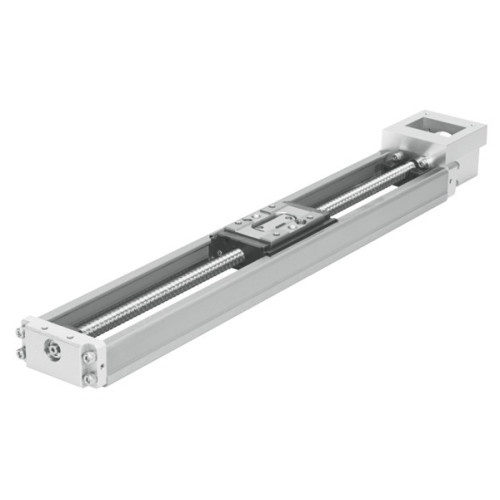

EGSK-26-100-6P Electrical slide

Manufacturer's No: EGSK-26-100-6P     Manufacturer: Festo
EGSK-26-100-6P Electrical slide

Availability On Request

£858.64
  • Working stroke: 100 mm
  • Size: 26
  • Reversing backlash: <= 20 µm
  • Spindle diameter: 8 mm
  • Spindle pitch: 6 mm/U
  • Max. speed: 0.59 m/s
  • Repetition accuracy: ±0.01 mm
  • Max. acceleration: 10 m/s²
  • Dynamic basic load rating linear guide: 5746 N
  • Static basic load rating linear guide: 12150 N

Read more

  • Max. drive torque: 0.11 Nm
  • Max. force Fy: 1541 N
  • Max. force Fz: 1541 N
  • Max. moment Mx: 26.2 Nm
  • Max. moment My: 8.9 Nm
  • Max. moment Mz: 8.9 Nm
  • Max. feed force Fx: 116 N
  • Frictional torque independent of load: 0.015 Nm
  • Reference service life: 3000 km
  • Moving mass: 153 g
  • Weight of slide: 153 g
  • Product weight: 1200 g
  • Weight of additional slide: 153 g
  • Basic weight for 0 mm stroke: 780 g
  • Additional weight per 10 mm stroke: 42 g
  • Material end cap: Die-cast aluminium, coated
  • Material profile: High-alloy stainless steel
  • Material drive cover: Die-cast aluminium, coated
  • Material slide: Steel
  • Material spindle nut: Steel
  • Material spindle: Steel


Product

Manufacturer Material ID -
EGSK-26-100-6P
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
31251511
Festo

Availability On Request

£858.64
