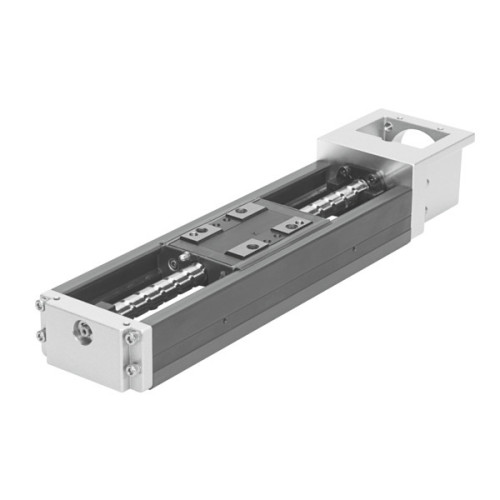

EGSK-33-400-10P Electrical slide

Manufacturer's No: EGSK-33-400-10P     Manufacturer: Festo
EGSK-33-400-10P Electrical slide

Availability On Request

£1,623.78
  • Working stroke: 400 mm
  • Size: 33
  • Reversing backlash: <= 20 µm
  • Spindle diameter: 10 mm
  • Spindle pitch: 10 mm/U
  • Max. speed: 0.79 m/s
  • Repetition accuracy: ±0.01 mm
  • Max. acceleration: 20 m/s²
  • Dynamic basic load rating linear guide: 9207 N
  • Static basic load rating linear guide: 20200 N

Read more

  • Max. drive torque: 0.24 Nm
  • Max. force Fy: 2083 N
  • Max. force Fz: 2083 N
  • Max. moment Mx: 42.2 Nm
  • Max. moment My: 13.8 Nm
  • Max. moment Mz: 13.8 Nm
  • Max. feed force Fx: 148 N
  • Frictional torque independent of load: 0.07 Nm
  • Reference service life: 5000 km
  • Moving mass: 310 g
  • Weight of slide: 310 g
  • Product weight: 3900 g
  • Weight of additional slide: 310 g
  • Basic weight for 0 mm stroke: 1380 g
  • Additional weight per 10 mm stroke: 63 g
  • Material end cap: Die-cast aluminium, coated
  • Material profile: High-alloy steel, coated
  • Material drive cover: Die-cast aluminium, coated
  • Material slide: Steel
  • Material spindle nut: Steel
  • Material spindle: Steel
  • Mounting position: optional
  • Guide: Recirculating ball bearing guide
  • Design: Electromechanical linear axis with ball screw drive
  • Referencing: Reference switch
  • Symbol: 991211
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Degree of protection: IP10
  • Ambient temperature: 0°C to 40°C
  • 2nd moment of area Iy: 62000 mm^4
  • 2nd moment of area Iz: 380000 mm^4
  • Mass moment of inertia JH per metre of stroke: 0.0771 kgm^2
  • Mass moment of inertia JO: 0.0166 kgm^2
  • Feed constant: 10 mm/U
  • Type of mounting: Via female thread and dowel pin
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
EGSK-33-400-10P
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
31251511
