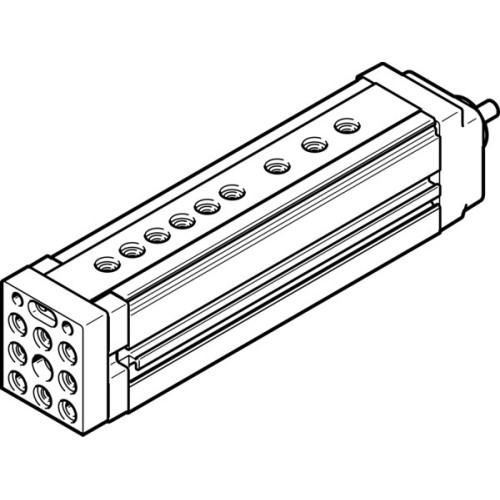

EGSL-BS-35-50-8P Mini slide

Manufacturer's No: EGSL-BS-35-50-8P     Manufacturer: Festo
EGSL-BS-35-50-8P Mini slide

Availability On Request

£1,269.77
  • Type: Mini slide
  • Working Stroke: 50 mm
  • Size: 35
  • Running Parallelism along Z-axis: 0.02 mm
  • Parallelism: 0.05 mm
  • Spindle Diameter: 8 mm
  • Spindle Pitch: 8 Y13
  • Design: Electric mini slide with ball screw drive
  • Motor Type: Stepper and Servo
  • Position Detection: Via proximity switch

Read more

  • Max. Acceleration: 25 m/s²
  • Max. Speed: 0.5 m/s
  • Repetition Accuracy: ±0.015 mm
  • Duty Cycle: 100%
  • Corrosion Resistance Class CRC: 0 (No corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364 Zone III
  • Sound Pressure Level: 60 dBA
  • Degree of Protection: IP40
  • Ambient Temperature: 0°C to 60°C
  • Continuous Feed Force: 50 N
  • Max. Drive Torque: 0.127 Nm
  • Max. Forces: Fy 512 N, Fz 512 N
  • Max. Moments: Mx 6.2 Nm, My 6 Nm, Mz 6 Nm
  • Max. Radial Force at Drive Shaft: 20 N
  • Max. Feed Force Fx: 75 N
  • Frictional Torque Independent of Load: 0.015 Nm
  • Mass Moment of Inertia: JL 0.0162 kgcm², JO 0.0426 kgcm²
  • Feed Constant: 8 Y13
  • Maintenance Interval: Life-time lubrication
  • Moving Mass: 270 g
  • Product Weight: 570 g
  • Type of Mounting: Via female thread, centring sleeve, with accessories
  • Materials: RoHS-compliant
  • Cover: Die-cast aluminium, painted
  • Guide Rail: Rolled steel
  • Housing: Wrought aluminium alloy, anodised
  • Yoke Plate: Wrought aluminium alloy, anodised
  • Spindle Nut: Rolled steel
  • Spindle: Rolled steel


Product

Manufacturer Material ID -
EGSL-BS-35-50-8P
Net Weight -
0.64kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£1,269.77
