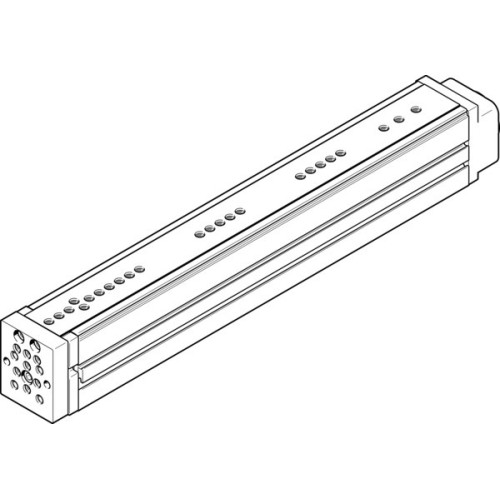

EGSL-BS-55-250-5P Mini slide

Manufacturer's No: EGSL-BS-55-250-5P     Manufacturer: Festo
EGSL-BS-55-250-5P Mini slide

Availability On Request

£2,138.99
  • EGSL-BS-55-250-5P Mini slide
  • Working stroke: 250 mm
  • Size: 55
  • Running parallelism along Z-axis: 0.1 mm
  • Parallelism: 0.125 mm
  • Reversing backlash theoretical: 50 µm
  • Spindle diameter: 12 mm
  • Spindle pitch: 5 mm
  • Guide: Ball bearing cage guide
  • Design: Electric mini slide with ball screw drive

Read more

  • Type of motor: Stepper motor and servo motor
  • Position detection: Via proximity switch
  • Max. acceleration: 25 m/s²
  • Max. speed: 0.4 m/s
  • Repetition accuracy: ±0.015 mm
  • Duty cycle: 100%
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Sound pressure level: 65 dBA
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 60°C
  • Continuous feed force: 200 N
  • Max. drive torque: 0.415 Nm
  • Max. force Fy: 563 N
  • Max. force Fz: 563 N
  • Max. moments: Mx: 27 Nm, My: 33 Nm, Mz: 33 Nm
  • Max. radial force at drive shaft: 260 N
  • Max. feed force Fx: 300 N
  • Frictional torque independent of load: 0.15 Nm
  • Reference value effective load: Horizontal 10 kg, Vertical 10 kg
  • Mass moment of inertia JL per kg of working load: 0.006 kgm²
  • Mass moment of inertia JO: 0.1574 kgm²
  • Feed constant: 5 mm
  • Maintenance interval: Life-time lubrication
  • Moving mass: 1660 g
  • Product weight: 3950 g
  • Type of mounting: Via female thread, centring sleeve, with accessories
  • Note on materials: RoHS-compliant
  • Materials: Cover - Die-cast aluminium, painted; Guide rail - Rolled steel; Housing - Wrought aluminium alloy, anodised; Yoke plate - Wrought aluminium alloy, anodised; Spindle nut, spindle - Rolled steel


Product

Manufacturer Material ID -
EGSL-BS-55-250-5P
Net Weight -
4.23kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£2,138.99
