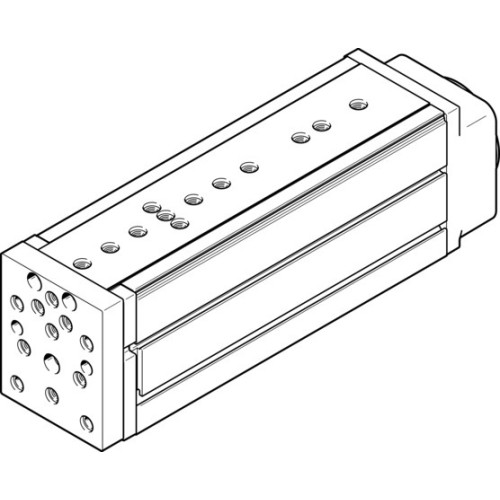

EGSL-BS-75-100-10P Mini slide

Manufacturer's No: EGSL-BS-75-100-10P     Manufacturer: Festo
EGSL-BS-75-100-10P Mini slide

Availability On Request

£1,723.31
  • Working stroke: 100 mm
  • Size: 75
  • Max. speed: 0.65 m/s
  • Max. acceleration: 25 m/s^2
  • Repetition accuracy: ±0.015 mm
  • Max. drive torque: 1.654 Nm
  • Continuous feed force: 300 N
  • Max. radial force at drive shaft: 300 N
  • Max. force Fy: 1539 N
  • Max. force Fz: 1539 N

Read more

  • Max. moment Mx: 67.4 Nm
  • Max. moment My: 47.1 Nm
  • Max. moment Mz: 47.1 Nm
  • Reference value effective load, horizontal: 14 kg
  • Reference value effective load, vertical: 14 kg
  • Mass moment of inertia JL per kg of working load: 0.0253 kgm^2
  • Mass moment of inertia JO: 0.8695 kgm^2
  • Frictional torque independent of load: 0.25 Nm
  • Running parallelism along Z-axis: 0.04 mm
  • Parallelism: 0.05 mm
  • Reversing backlash theoretical: 50 µm
  • Spindle diameter: 20 mm
  • Spindle pitch: 10 Y13
  • Type of motor: Stepper motor
  • Type of motor: Servo motor
  • Spindle type: Ball screw drive
  • Position detection: Via proximity switch
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 60°C
  • Sound pressure level: 65 dBA
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Feed constant: 10 Y13
  • Maintenance interval: Life-time lubrication
  • Moving mass: 2280 g
  • Product weight: 5100 g
  • Type of mounting: Via female thread
  • Type of mounting: Via centring sleeve
  • Type of mounting: With accessories
  • Note on materials: RoHS-compliant
  • Material cover: Die-cast aluminium, painted
  • Material guide rail: Rolled steel
  • Material housing: Wrought aluminium alloy, anodised
  • Material yoke plate: Wrought aluminium alloy, anodised
  • Material spindle nut: Rolled steel
  • Material spindle: Rolled steel


Product

Manufacturer Material ID -
EGSL-BS-75-100-10P
Net Weight -
5.33kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£1,723.31
