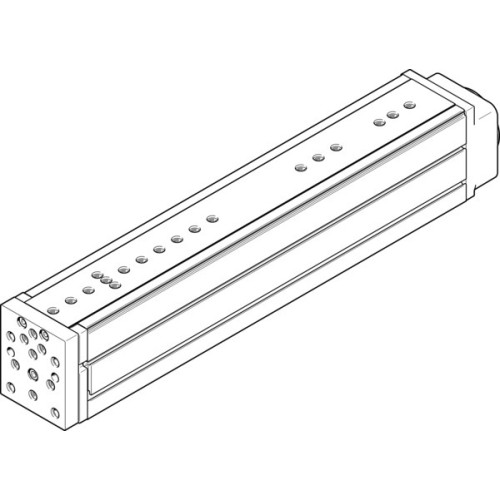

EGSL-BS-75-300-20P Mini slide

Manufacturer's No: EGSL-BS-75-300-20P     Manufacturer: Festo
EGSL-BS-75-300-20P Mini slide

Availability On Request

£2,479.14
  • Mini slide with a working stroke of 300mm and a size of 75
  • Running parallelism along Z-axis: 0.12mm, Parallelism: 0.15mm
  • Spindle diameter: 20mm, Spindle pitch: 20Y13
  • Reversing backlash theoretical: 50mim
  • Design: Electric mini slide with ball screw drive guidance
  • Motor options: Stepper motor and servo motor
  • Position detection via proximity switch
  • Max. acceleration: 25m/s², Max. speed: 1.3m/s
  • Repetition accuracy: ±0.015mm, Duty cycle: 100%
  • Corrosion resistance class CRC: 0 (No corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364 zone III
  • Sound pressure level: 65dBA, Degree of protection: IP40
  • Ambient temperature range: 0°C to 60°C
  • Continuous feed force: 300N, Max. drive torque: 2.231Nm
  • Max. forces: Fy: 555N, Fz: 555N, Radial force at drive shaft: 300N
  • Max. moments: Mx: 46.4Nm, My: 36.5Nm, Mz: 36.5Nm
  • Max. feed force Fx: 450N, Frictional torque independent of load: 0.155Nm
  • Reference value effective load: Horizontal: 14kg, Vertical: 14kg
  • Mass moment of inertia: JL per kg of working load: 0.1013kgm², JO: 1.3459kgm²
  • Feed constant: 20Y13, Maintenance interval: Life-time lubrication
  • Moving mass: 3440g, Product weight: 8050g
  • Mounting options: Via female thread, centring sleeve, with accessories
  • RoHS-compliant materials: Die-cast aluminum cover, painted cover, rolled steel guide rail, wrought aluminum alloy housing (anodized), yoke plate, spindle nut, and spindle (all rolled steel)


Product

Manufacturer Material ID -
EGSL-BS-75-300-20P
Net Weight -
8.44kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£2,479.14
