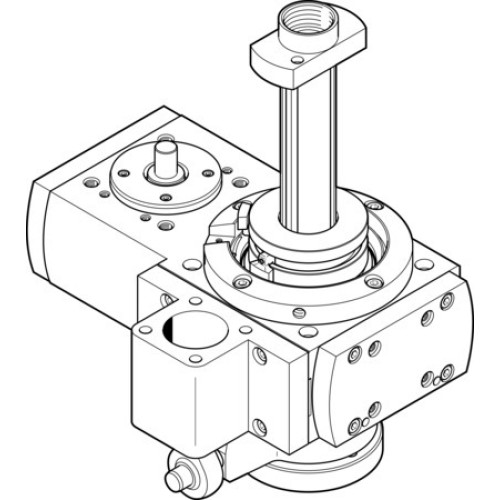

EHMB-32-200 Rotary lifting module

Manufacturer's No: EHMB-32-200     Manufacturer: Festo
EHMB-32-200 Rotary lifting module

Availability On Request

£4,007.57
  • Model: EHMB-32-200 Rotary Lifting Module
  • Drive Pinion Diameter: 12 mm
  • Working Stroke: 200 mm
  • Rotation Angle: Infinite
  • Toothed-Belt Pitch: 5 mm
  • Gear Unit Ratio: 3:1
  • Max. Drive Output Speed: 300 RPM
  • Max. Drive Input Speed: 900 RPM
  • Max. Drive Torque: 6.7 Nm
  • Max. Feed Force Fx: 750 N

Read more

  • Frictional Torque Independent of Load: 0.5 Nm
  • Product Weight: 6388 g
  • Material Drive Shaft: High-Alloy Stainless Steel
  • Material Cover: Anodised Wrought Aluminium Alloy
  • Material Housing: Anodised Wrought Aluminium Alloy
  • Material Toothed Belt: Polychloroprene with Glass Fibre
  • LABS (PWIS) Conformity: VDMA24364 Zone III
  • Ambient Temperature: -10°C to 60°C
  • Mounting Position: Optional
  • Design: Electromechanical Rotary/Lifting Module with Toothed Belt Gear Unit
  • Note on Materials: RoHS-Compliant


Product

Manufacturer Material ID -
EHMB-32-200
Net Weight -
8.13kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
