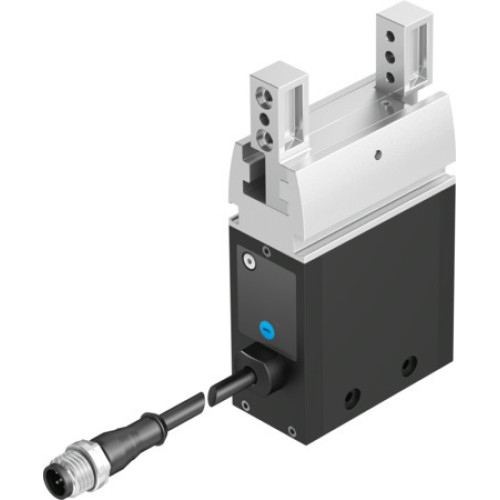

EHPS-20-A Parallel gripper

Manufacturer's No: EHPS-20-A     Manufacturer: Festo
EHPS-20-A Parallel gripper

Availability On Request

£1,254.94
  • Gripper Model: EHPS-20-A
  • Gripper Size: 20
  • Stroke per Gripper Jaws: 13 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): 0.3 degrees
  • Max. Gripper Jaw Backlash (Sz): 0.05 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.01 mm
  • Number of Gripper Jaws: 2
  • Drive System: Electrical

Read more

  • Gripper Function: Parallel
  • Design: Worm Gear Unit, T-Shape, Rack and Pinion, Electric Gripper
  • Conforms to Standard: IEC 61010-1
  • Guide: Plain-bearing Guide
  • Position Detection: Via Proximity Switch
  • Type of Motor: DC Servo Motor
  • Operator Controls: Latched Switch
  • Ready Status Indication: LED
  • Max. Cycle Frequency: 0.7 Hz
  • Max. Mass per External Gripper Finger: 150 g
  • Max. Current Consumption: 2000 A
  • Nominal Operating Voltage DC: 24 V
  • Permissible Voltage Fluctuations: +/- 10%
  • Approval: RCM Trademark, KC Mark: KC-EMV, CE Mark: EU EMC Directive, EU RoHS Directive, UKCA Mark: UK EMC and RoHS Instructions
  • Corrosion Resistance Class: CRC 1 - Low Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Suitability for Li-ion Battery Production: Metals with more than 5% copper excluded, exceptions for specific components
  • Sound Pressure Level: 70 dBA
  • Degree of Protection: IP40
  • Ambient Temperature Range: 5°C to 60°C
  • Total Gripping Force: 218 N
  • Mass Moment of Inertia: 2.02 kgcm²
  • Max. Force on Gripper Jaw (Fz Static): 325 N
  • Max. Torque at Gripper (Mx Static, My Static, Mz Static): 13 Nm, 8 Nm, 13 Nm
  • Lubrication Interval for Guide Components: 2 years
  • Product Weight: 532 g
  • Electrical Connection: 5-pin, Cable with Plug, M12x1
  • Type of Mounting: Via Female Thread and Centring Sleeve, Via Through-hole and Centring Sleeve, Either
  • Note on Materials: RoHS-Compliant
  • Material Housing: Anodised Aluminium
  • Material Gripper Jaws: High-alloy Stainless Steel


Product

Manufacturer Material ID -
EHPS-20-A
Net Weight -
0.78kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£1,254.94
