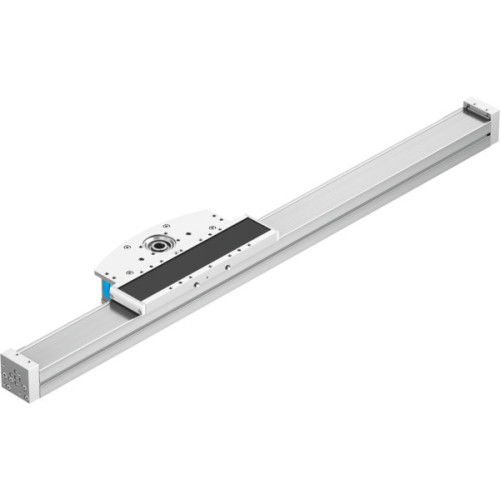

ELCC-TB-KF-60-200-0H-P0-CR Cantilever axis

Manufacturer's No: ELCC-TB-KF-60-200-0H-P0-CR     Manufacturer: Festo
ELCC-TB-KF-60-200-0H-P0-CR Cantilever axis

Availability Back Order

£1,953.79
  • Design: Electromechanical cantilever axis
  • Effective diameter of drive pinion: 30.558 mm
  • Working stroke: 200 mm
  • Max. acceleration: 50 m/s²
  • Max. speed: 5 m/s
  • Repetition accuracy: ±0.05 mm
  • Max. drive torque: 5.2 Nm
  • Max. force Fy: 4216 N
  • Max. force Fz: 4119 N
  • Max. moment My: 293 Nm

Read more

  • Max. moment Mz: 288 Nm
  • Mass moment of inertia JH per metre of stroke: 8.9 kg·cm²
  • Reference service life: 5000 km
  • Lubrication interval dependent on operating distance: 1000 km
  • Material end cap: Anodised wrought aluminium alloy
  • Material guide rail: Rolled steel, Corrotect coated
  • Material housing: High-alloy stainless steel
  • Material slide: Anodised die-cast aluminium
  • Material toothed belt: Polychloroprene with glass filament and nylon coating

Accessories



Product

Manufacturer Material ID -
ELCC-TB-KF-60-200-0H-P0-CR
Net Weight -
5.12kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
