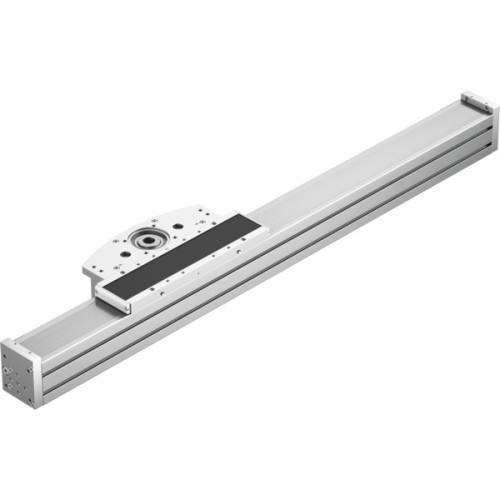

ELCC-TB-KF-90-1200-0H-P0-CR Cantilever axis

Manufacturer's No: ELCC-TB-KF-90-1200-0H-P0-CR     Manufacturer: Festo
ELCC-TB-KF-90-1200-0H-P0-CR Cantilever axis

Availability On Request

£3,552.34
  • Cantilever axis with effective diameter of drive pinion: 50.93 mm
  • Working stroke: 1200 mm with size 90 and toothed-belt pitch of 5 mm
  • Electromechanical design with recirculating ball bearing guide
  • Max. acceleration: 30 m/s² and max. speed: 5 m/s
  • Repetition accuracy: ±0.05 mm and corrosion resistance class CRC: 0
  • VDMA24364 zone III conformity and IP20 degree of protection
  • Operating temperature range: -10°C to 60°C
  • Max. drive torque: 33 Nm and max. forces: Fy 13957 N, Fz 13523 N
  • Max. moments: Mx 167 Nm, My 1300 Nm, Mz 1233 Nm
  • Max. feed force: 1200 N and feed constant: 160

Read more

  • Reference service life: 5000 km with lubrication interval of 1000 km
  • Mass moment of inertia and weight specifications for different stroke lengths
  • Materials: Anodised aluminum alloy, high-alloy stainless steel, rolled steel with Corrotect coating, polychloroprene toothed belt


Product

Manufacturer Material ID -
ELCC-TB-KF-90-1200-0H-P0-CR
Net Weight -
34.10kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£3,552.34
