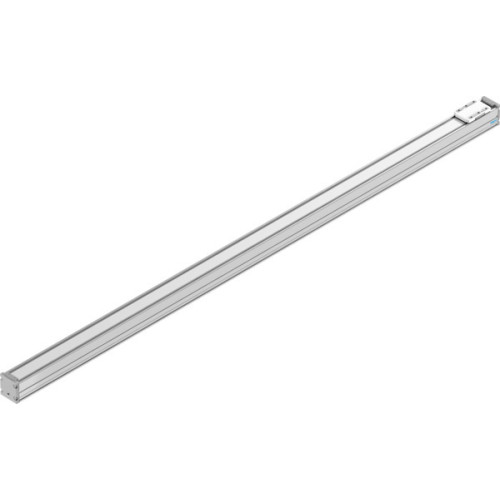

ELFC-KF-45-1200 Guide axis

Manufacturer's No: ELFC-KF-45-1200     Manufacturer: Festo
ELFC-KF-45-1200 Guide axis

Availability Back Order

£421.28
  • ELFC-KF-45-1200 Guide axis
  • Working stroke: 1200 mm
  • Size: 45
  • Guide: Recirculating ball bearing guide
  • Design: Guidance
  • Max. acceleration: 15 m/s²
  • Max. speed: 1.5 m/s
  • Duty cycle: 100%
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III

Read more

  • Cleanroom class: Class 7 according to ISO 14644-1
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Max. force:
    • Fy: 880 N
    • Fz: 880 N
    • Fy total axis: 300 N
    • Fz total axis: 600 N
  • Fy: 880 N
  • Fz: 880 N
  • Fy total axis: 300 N
  • Fz total axis: 600 N
  • Max. moment:
    • Mx: 5.5 Nm
    • My: 4.7 Nm
    • Mz: 4.7 Nm
    • Mx total axis: 5.5 Nm
    • My total axis: 4.7 Nm
    • Mz total axis: 4.7 Nm
  • Mx: 5.5 Nm
  • My: 4.7 Nm
  • Mz: 4.7 Nm
  • Mx total axis: 5.5 Nm
  • My total axis: 4.7 Nm
  • Mz total axis: 4.7 Nm
  • Torsional mass moment of inertia It: 8500 Y12
  • Displacement force: 4.5 N
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 144 g
  • Basic weight:
    • For 0 mm stroke: 384 g
    • Additional weight per 10 mm stroke: 23 g
  • For 0 mm stroke: 384 g
  • Additional weight per 10 mm stroke: 23 g
  • Dynamic deflection (moving load): 0.05% of the axis length, max. 0.5 mm
  • Static deflection (load in standstill): 0.1% of the axis length
  • Material:
    • End cap: Painted die-cast aluminium
    • Profile: Anodised wrought aluminium alloy
    • Cover tape: High-alloy stainless steel
    • Guide slide: Steel
    • Guide rail: Steel
    • Slide: Die-cast aluminium
  • End cap: Painted die-cast aluminium
  • Profile: Anodised wrought aluminium alloy
  • Cover tape: High-alloy stainless steel
  • Guide slide: Steel
  • Guide rail: Steel
  • Slide: Die-cast aluminium
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
ELFC-KF-45-1200
Net Weight -

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
