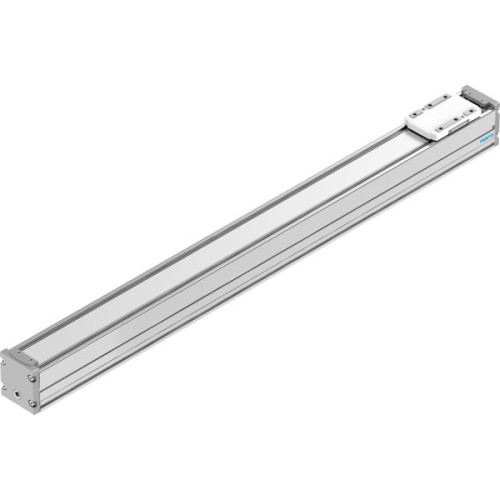

ELFC-KF-45-500 Guide axis

Manufacturer's No: ELFC-KF-45-500     Manufacturer: Festo
ELFC-KF-45-500 Guide axis

Availability Back Order

£348.47
  • ELFC-KF-45-500 Guide axis
  • Working stroke: 500 mm
  • Size: 45
  • Mounting position: optional
  • Guide: Recirculating ball bearing guide
  • Design: Guidance
  • Position detection: Via proximity switch, Via inductive sensors
  • Max. acceleration: 15 m/s²
  • Max. speed: 1.5 m/s
  • Duty cycle: 100%

Read more

  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • 2nd moment of area Iy: 140000 mm^4
  • 2nd moment of area Iz: 170000 mm^4
  • Max. force Fy: 880 N
  • Max. force Fz: 880 N
  • Max. moment Mx: 5.5 Nm
  • Max. moment My: 4.7 Nm
  • Max. moment Mz: 4.7 Nm
  • Max. force Fy total axis: 300 N
  • Max. force Fz total axis: 600 N
  • Max. moment Mx total axis: 5.5 Nm
  • Max. moment My total axis: 4.7 Nm
  • Max. moment Mz total axis: 4.7 Nm
  • Torsional mass moment of inertia It: 8500 mm^4
  • Displacement force: 4.5 N
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 144 g
  • Basic weight for 0 mm stroke: 384 g
  • Additional weight per 10 mm stroke: 23 g
  • Dynamic deflection (moving load): 0.05% of the axis length, max. 0.5 mm
  • Static deflection (load in standstill): 0.1% of the axis length
  • Material end cap: Painted die-cast aluminium
  • Material profile: Anodised wrought aluminium alloy
  • Note on materials: RoHS-compliant
  • Material cover tape: High-alloy stainless steel
  • Material guide slide: Steel
  • Material guide rail: Steel
  • Material slide: Die-cast aluminium


Product

Manufacturer Material ID -
ELFC-KF-45-500
Net Weight -
1.60kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
