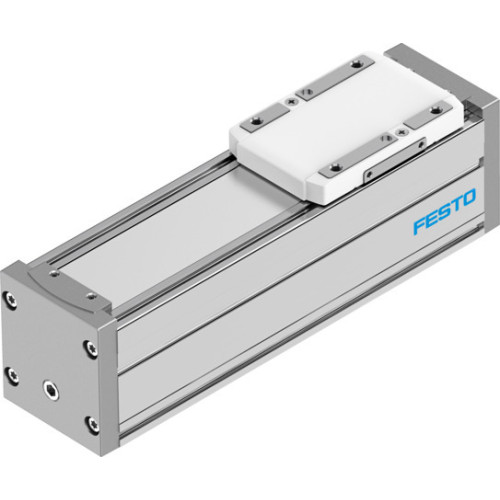

ELFC-KF-60-100 Guide axis

Manufacturer's No: ELFC-KF-60-100     Manufacturer: Festo
ELFC-KF-60-100 Guide axis

Availability On Request

£334.70
  • Product: ELFC-KF-60-100 Guide axis
  • Working stroke: 100 mm
  • Size: 60
  • Mounting position: Optional
  • Guide: Recirculating ball bearing guide
  • Position detection: Via proximity switch, inductive sensors
  • Max. acceleration: 15 m/s²
  • Max. speed: 1.5 m/s
  • Duty cycle: 100%
  • Corrosion resistance class CRC: 0 (No corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Max. force: Fy 3641 N, Fz 3641 N
  • Max. moment: Mx 29.1 Nm, My 31.8 Nm, Mz 31.8 Nm
  • Max. force total axis: Fy 600 N, Fz 1800 N
  • Max. moment total axis: Mx 29.1 Nm, My 31.8 Nm, Mz 31.8 Nm
  • Torsional mass moment of inertia: 29800 kg·mm²
  • Displacement force: 6.75 N
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 407 g
  • Basic weight: 1029 g (0 mm stroke)
  • Additional weight per 10 mm stroke: 43 g
  • Dynamic deflection (moving load): 0.05% of axis length, max. 0.5 mm
  • Static deflection (load in standstill): 0.1% of axis length
  • Material: End cap - Painted die-cast aluminium, Profile - Anodised wrought aluminium alloy, Cover tape - High-alloy stainless steel, Guide slide - Steel, Guide rail - Steel, Slide - Die-cast aluminium
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
ELFC-KF-60-100
Net Weight -
1.76kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
