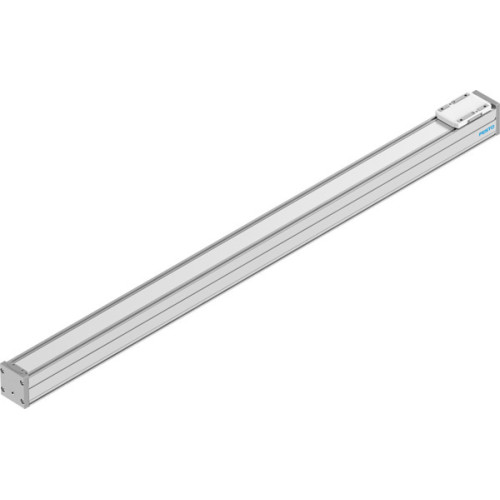

ELFC-KF-60-1000 Guide axis

Manufacturer's No: ELFC-KF-60-1000     Manufacturer: Festo
ELFC-KF-60-1000 Guide axis

Availability Back Order

£458.15
  • ELFC-KF-60-1000 Guide axis
  • Working stroke: 1000 mm
  • Size: 60
  • Guide: Recirculating ball bearing guide
  • Max. acceleration: 15 m/s²
  • Max. speed: 1.5 m/s
  • Duty cycle: 100%
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Degree of protection: IP40

Read more

  • Ambient temperature: 0°C to 50°C
  • Max. force:
    • Fy: 3641 N
    • Fz: 3641 N
    • Fy total axis: 600 N
    • Fz total axis: 1800 N
  • Fy: 3641 N
  • Fz: 3641 N
  • Fy total axis: 600 N
  • Fz total axis: 1800 N
  • Max. moment:
    • Mx: 29.1 Nm
    • My: 31.8 Nm
    • Mz: 31.8 Nm
    • Mx total axis: 29.1 Nm
    • My total axis: 31.8 Nm
    • Mz total axis: 31.8 Nm
  • Mx: 29.1 Nm
  • My: 31.8 Nm
  • Mz: 31.8 Nm
  • Mx total axis: 29.1 Nm
  • My total axis: 31.8 Nm
  • Mz total axis: 31.8 Nm
  • Torsional mass moment of inertia It: 29800 kg·mm²
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 407 g
  • Basic weight for 0 mm stroke: 1029 g
  • Additional weight per 10 mm stroke: 43 g
  • Dynamic deflection (moving load): 0.05% of the axis length, max. 0.5 mm
  • Static deflection (load in standstill): 0.1% of the axis length
  • Material end cap: Painted die-cast aluminium
  • Material profile: Anodised wrought aluminium alloy
  • Material cover tape: High-alloy stainless steel
  • Material guide slide: Steel
  • Material guide rail: Steel
  • Material slide: Die-cast aluminium
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
ELFC-KF-60-1000
Net Weight -
8.20kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
