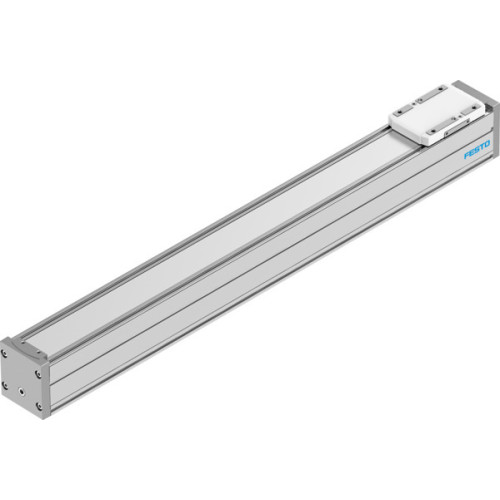

ELFC-KF-60-500 Guide axis

Manufacturer's No: ELFC-KF-60-500     Manufacturer: Festo
ELFC-KF-60-500 Guide axis

Availability Back Order

£389.56
  • ELFC-KF-60-500 Guide axis
  • Working stroke: 500 mm
  • Size: 60
  • Mounting position: optional
  • Guide: Recirculating ball bearing guide
  • Position detection: Via proximity switch, Via inductive sensors
  • Max. acceleration: 15 m/s²
  • Max. speed: 1.5 m/s
  • Duty cycle: 100%
  • Corrosion resistance class CRC: 0 - No corrosion stress

Read more

  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • 2nd moment of area Iy: 441000 mm^4
  • 2nd moment of area Iz: 542000 mm^4
  • Max. force Fy: 3641 N, Max. force Fz: 3641 N
  • Max. moment Mx: 29.1 Nm, Max. moment My: 31.8 Nm, Max. moment Mz: 31.8 Nm
  • Max. force Fy total axis: 600 N, Max. force Fz total axis: 1800 N
  • Max. moment Mx total axis: 29.1 Nm, Max. moment My total axis: 31.8 Nm, Max. moment Mz total axis: 31.8 Nm
  • Torsional mass moment of inertia It: 29800 mm^4
  • Displacement force: 6.75 N
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 407 g
  • Basic weight for 0 mm stroke: 1029 g
  • Additional weight per 10 mm stroke: 43 g
  • Dynamic deflection (moving load): 0.05% of the axis length, max. 0.5 mm
  • Static deflection (load in standstill): 0.1% of the axis length
  • Material end cap: Painted die-cast aluminium
  • Material profile: Anodised wrought aluminium alloy
  • Material cover tape: High-alloy stainless steel
  • Material guide slide: Steel
  • Material guide rail: Steel
  • Material slide: Die-cast aluminium
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
ELFC-KF-60-500
Net Weight -
3.15kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
Festo

Availability Back Order

£389.56
