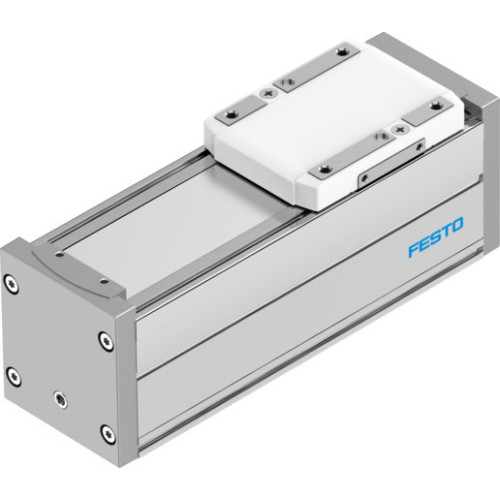

ELFC-KF-80-100 Guide axis

Manufacturer's No: ELFC-KF-80-100     Manufacturer: Festo
ELFC-KF-80-100 Guide axis

Availability On Request

£354.76
  • ELFC-KF-80-100 Guide axis
  • Working stroke: 100 mm
  • Size: 80
  • Mounting position: optional
  • Guide: Recirculating ball bearing guide
  • Design: Guidance
  • Position detection: Via proximity switch, Via inductive sensors
  • Max. acceleration: 15 m/s²
  • Max. speed: 1.5 m/s
  • Duty cycle: 100%

Read more

  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • 2nd moment of area Iy: 1370000 mm^4
  • 2nd moment of area Iz: 1660000 mm^4
  • Max. force Fy: 5543 N, Max. force Fz: 5543 N
  • Max. moment Mx: 59.8 Nm, Max. moment My: 56.2 Nm, Max. moment Mz: 56.2 Nm
  • Max. force Fy total axis: 900 N, Max. force Fz total axis: 2700 N
  • Max. moment Mx total axis: 59.8 Nm, Max. moment My total axis: 56.2 Nm, Max. moment Mz total axis: 56.2 Nm
  • Torsional mass moment of inertia It: 90500 mm^4
  • Displacement force: 15 N
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 815 g
  • Basic weight for 0 mm stroke: 1905 g
  • Additional weight per 10 mm stroke: 73 g
  • Dynamic deflection (moving load): 0.05% of the axis length, max. 0.5 mm
  • Static deflection (load in standstill): 0.1% of the axis length
  • Material end cap: Painted die-cast aluminium
  • Material profile: Anodised wrought aluminium alloy
  • Note on materials: RoHS-compliant
  • Material cover tape: High-alloy stainless steel
  • Material guide slide: Steel
  • Material guide rail: Steel
  • Material slide: Die-cast aluminium


Product

Manufacturer Material ID -
ELFC-KF-80-100
Net Weight -
2.63kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
