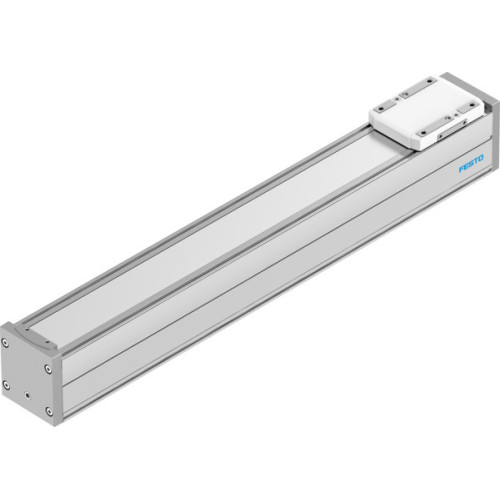

ELFC-KF-80-500 Guide axis

Manufacturer's No: ELFC-KF-80-500     Manufacturer: Festo
ELFC-KF-80-500 Guide axis

Availability On Request

£421.59
  • Product: ELFC-KF-80-500 Guide axis
  • Working Stroke: 500 mm
  • Size: 80
  • Mounting Position: Optional
  • Guide: Recirculating ball bearing guide
  • Design: Guidance
  • Position Detection: Via proximity switch, Via inductive sensors
  • Max. Acceleration: 15 m/s²
  • Max. Speed: 1.5 m/s
  • Duty Cycle: 100%

Read more

  • Corrosion Resistance Class CRC: 0 (No corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364 Zone III
  • Cleanroom Class: Class 7 according to ISO 14644-1
  • Degree of Protection: IP40
  • Ambient Temperature: 0°C to 50°C
  • 2nd Moment of Area Iy: 1370000 mm^4
  • 2nd Moment of Area Iz: 1660000 mm^4
  • Max. Force Fy: 5543 N
  • Max. Force Fz: 5543 N
  • Max. Moment Mx: 59.8 Nm
  • Max. Moment My: 56.2 Nm
  • Max. Moment Mz: 56.2 Nm
  • Max. Force Fy Total Axis: 900 N
  • Max. Force Fz Total Axis: 2700 N
  • Max. Moment Mx Total Axis: 59.8 Nm
  • Max. Moment My Total Axis: 56.2 Nm
  • Max. Moment Mz Total Axis: 56.2 Nm
  • Torsional Mass Moment of Inertia It: 90500 mm^4
  • Displacement Force: 15 N
  • Reference Service Life: 5000 km
  • Maintenance Interval: Life-time lubrication
  • Moving Mass: 815 g
  • Basic Weight for 0 mm Stroke: 1905 g
  • Additional Weight per 10 mm Stroke: 73 g
  • Dynamic Deflection (Moving Load): 0.05% of the axis length, max. 0.5 mm
  • Static Deflection (Load in Standstill): 0.1% of the axis length
  • Material End Cap: Painted die-cast aluminium
  • Material Profile: Anodised wrought aluminium alloy
  • Material Cover Tape: High-alloy stainless steel
  • Material Guide Slide: Steel
  • Material Guide Rail: Steel
  • Material Slide: Die-cast aluminium
  • Note on Materials: RoHS-compliant


Product

Manufacturer Material ID -
ELFC-KF-80-500
Net Weight -
5.51kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
CN
UNSPSC -
39121459
