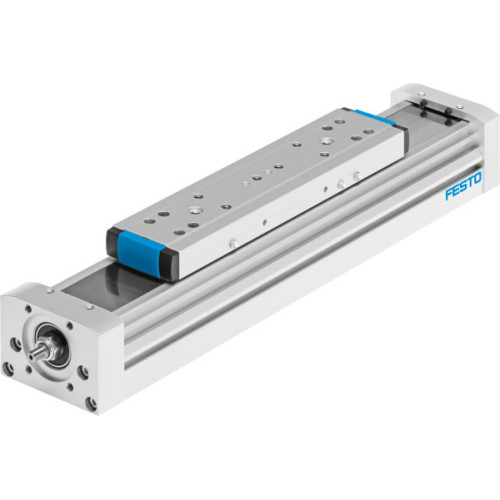

ELGA-BS-KF-80-100-0H-10P-ML Ball screw axis

Manufacturer's No: ELGA-BS-KF-80-100-0H-10P-ML     Manufacturer: Festo
ELGA-BS-KF-80-100-0H-10P-ML Ball screw axis

Availability Back Order

£1,901.13
  • Type: Ball screw axis ELGA-BS-KF-80-100-0H-10P-ML
  • Working Stroke: 100 mm
  • Size: 80
  • Spindle Diameter: 15 mm
  • Spindle Pitch: 10 mm/U
  • Guide: Recirculating ball bearing guide
  • Motor Type: Stepper motor, Servo motor
  • Functional Principle of Measuring System: Incremental
  • Max. Acceleration: 15 m/s²
  • Max. Rotational Speed: 3000 RPM

Read more

  • Max. Speed: 0.5 m/s
  • Repetition Accuracy: ±0.02 mm
  • Duty Cycle: 100%
  • Conformity: VDMA24364 zone III
  • Protection: IP40
  • Ambient Temperature: -10°C to 60°C
  • Max. Force: Fy 2500 N, Fz 3050 N
  • Max. Moment: Mx 36 Nm, My 228 Nm, Mz 228 Nm
  • Distance Between Slide Surface and Guide Centre: 60 mm
  • Max. Radial Force at Drive Shaft: 250 N
  • Max. Feed Force: Fx 1600 N
  • Mass Moment of Inertia: It 67300 kg·cm²
  • Material: Aluminum alloy, Steel, Stainless steel strip
  • RoHS-compliant materials
  • Reference Service Life: 5000 km
  • Moving Mass: 1370 g
  • Dynamic Deflection: 0.05% of axis length, max. 0.5 mm
  • Static Deflection: 0.1% of axis length

Accessories

ZBH-9-B Centring sleeve

Product Code - 8137184
Price £1.59
Back Order


Product

Manufacturer Material ID -
ELGA-BS-KF-80-100-0H-10P-ML
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251511
Festo

Availability Back Order

£1,901.13
