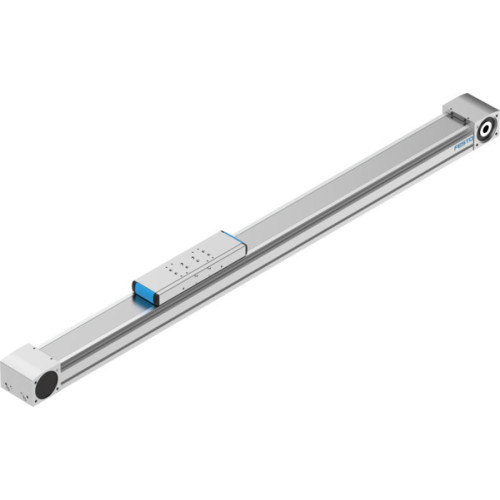

ELGA-TB-KF-120-1200-0H Toothed belt axis

Manufacturer's No: ELGA-TB-KF-120-1200-0H     Manufacturer: Festo
ELGA-TB-KF-120-1200-0H Toothed belt axis

Availability On Request

£3,184.98
  • Type: Toothed belt axis ELGA-TB-KF-120-1200-0H
  • Design: Electromechanical linear axis with toothed belt
  • Drive Pinion: Effective diameter 52.52 mm
  • Working Stroke: 1200 mm
  • Size: 120
  • Max. Acceleration: 50 m/s²
  • Max. Speed: 5 m/s
  • Repetition Accuracy: ±0.08 mm
  • Max. Drive Torque: 34.1 Nm
  • Max. Force Fy: 5500 N, Fz: 6890 N

Read more

  • Max. Moments: Mx: 104 Nm, My: 680 Nm, Mz: 680 Nm
  • Max. Feed Force Fx: 1300 N
  • Material: Wrought aluminum alloy, Anodised, Stainless steel strip, Tempered steel, Corrotect coated, High-alloy stainless steel, Polychloroprene with glass filament and nylon coating
  • LABS (PWIS) Conformity: VDMA24364 zone III
  • Degree of Protection: IP40
  • Ambient Temperature: -10°C to 60°C
  • Reference Service Life: 5000 km
  • Weight: Slide 4190 kg, Additional slide 3240 kg
  • Dynamic Deflection: 0.05% of axis length, max. 0.5 mm
  • Static Deflection: 0.1% of axis length
  • Note: RoHS-compliant materials


Product

Manufacturer Material ID -
ELGA-TB-KF-120-1200-0H
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251511
