ELGA-TB-KF-120-500-0H Toothed belt axis

Manufacturer's No: ELGA-TB-KF-120-500-0H     Manufacturer: Festo

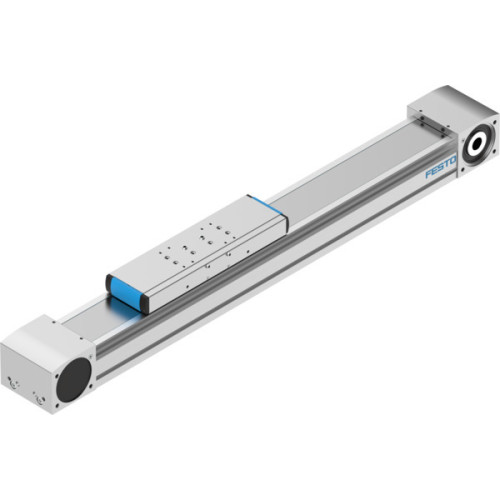

ELGA-TB-KF-120-500-0H Toothed belt axis

Availability On Request

£2,594.39
  • Type: Toothed belt axis ELGA-TB-KF-120-500-0H
  • Drive Pinion Diameter: 52.52 mm
  • Working Stroke: 500 mm
  • Size: 120
  • Toothed-belt Pitch: 5 mm
  • Motor Type: Stepper and Servo
  • Measuring System: Incremental
  • Max. Acceleration: 50 m/s²
  • Max. Speed: 5 m/s
  • Repetition Accuracy: ±0.08 mm

Read more

  • Duty Cycle: 100%
  • LABS (PWIS) Conformity: VDMA24364 zone III
  • Protection: IP40
  • Temperature Range: -10°C to 60°C
  • Max. Drive Torque: 34.1 Nm
  • Max. Forces: Fy 5500 N, Fz 6890 N
  • Max. Moments: Mx 104 Nm, My 680 Nm, Mz 680 Nm
  • Feed Force: Fx 1300 N
  • Frictional Torque: 2.8 Nm
  • Mass Moment of Inertia: It 435680 Y12, JH 2.15 kgm², JL 6.9 kgm², JO 40.99 kgm², JW 28.91 kgm²
  • Reference Service Life: 5000 km
  • Weight: Slide 4190 kg, Additional Slide 3240 kg
  • Deflection: Dynamic 0.05% of axis length (max 0.5 mm), Static 0.1% of axis length
  • Material: Wrought Aluminium Alloy, Anodised, Stainless Steel, Tempered Steel, Corrotect Coated, High-Alloy Stainless Steel, Polychloroprene with Glass Filament and Nylon Coating
  • RoHS-Compliant Materials


Product

Manufacturer Material ID -
ELGA-TB-KF-120-500-0H
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251511
