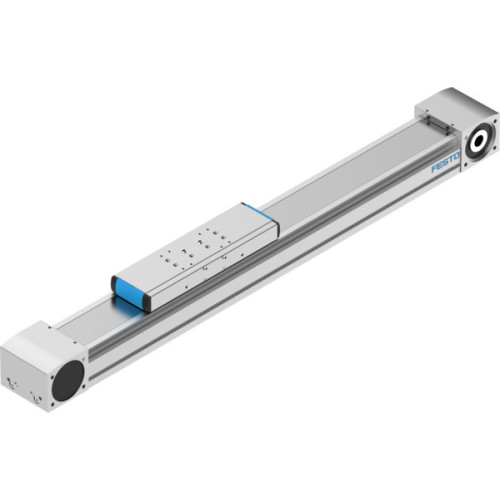

ELGA-TB-KF-120-600-0H Toothed belt axis

Manufacturer's No: ELGA-TB-KF-120-600-0H     Manufacturer: Festo
ELGA-TB-KF-120-600-0H Toothed belt axis

Availability On Request

£2,678.73
  • Type: Toothed belt axis ELGA-TB-KF-120-600-0H
  • Drive Pinion Diameter: 52.52 mm
  • Working Stroke: 600 mm
  • Size: 120
  • Toothed-Belt Pitch: 5 mm
  • Motor Type: Stepper and Servo
  • Max. Acceleration: 50 m/s²
  • Max. Speed: 5 m/s
  • Repetition Accuracy: ±0.08 mm
  • Max. Drive Torque: 34.1 Nm

Read more

  • Max. Force: Fy 5500 N, Fz 6890 N
  • Max. Moment: Mx 104 Nm, My 680 Nm, Mz 680 Nm
  • Max. Feed Force: Fx 1300 N
  • Mass Moment of Inertia: It 435680 Y12, JH 2.15 kgm², JL 6.9 kgm², JO 40.99 kgm², JW 28.91 kgm²
  • Reference Service Life: 5000 km
  • Weight: Slide 4190 kg, Additional Slide 3240 kg
  • Material: Wrought Aluminium Alloy, Anodised, Stainless Steel Strip, Tempered Steel, Corrotect Coated, High-Alloy Stainless Steel, Polychloroprene with Glass Filament and Nylon Coating
  • LABS (PWIS) Conformity: VDMA24364 Zone III
  • Degree of Protection: IP40
  • Ambient Temperature: -10°C to 60°C
  • Dynamic Deflection: 0.05% of axis length, max. 0.5 mm
  • Static Deflection: 0.1% of axis length
  • Mounting Position: Optional
  • Functional Principle of Measuring System: Incremental
  • Note: RoHS-Compliant Materials


Product

Manufacturer Material ID -
ELGA-TB-KF-120-600-0H
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251511
