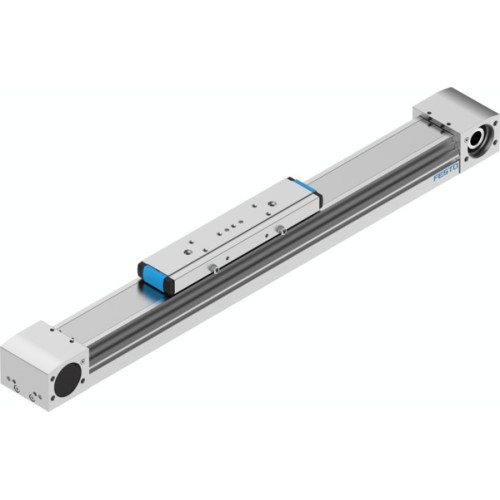

ELGA-TB-KF-70-300-0H Toothed belt axis

Manufacturer's No: ELGA-TB-KF-70-300-0H     Manufacturer: Festo
ELGA-TB-KF-70-300-0H Toothed belt axis

Availability On Request

£1,483.51
  • Type: Toothed belt axis ELGA-TB-KF-70-300-0H
  • Design: Electromechanical linear axis with toothed belt
  • Drive Pinion: Effective diameter 28.65 mm
  • Working Stroke: 300 mm
  • Size: 70
  • Max. Acceleration: 50 m/s²
  • Max. Speed: 5 m/s
  • Repetition Accuracy: ±0.08 mm
  • Max. Drive Torque: 5.02 Nm
  • Max. Force Fy: 1500 N

Read more

  • Max. Force Fz: 1850 N
  • Max. Moment Mx: 16 Nm
  • Max. Moment My: 132 Nm
  • Max. Moment Mz: 132 Nm
  • Max. Feed Force Fx: 350 N
  • Material: Wrought aluminum alloy, anodized, stainless steel components
  • RoHS-compliant
  • Weight: Slide 900 kg, Additional slide 740 kg
  • Reference Service Life: 5000 km
  • Ambient Temperature: -10°C to 60°C
  • Protection: IP40
  • Mounting Position: Optional
  • Guide: Recirculating ball bearing
  • Functional Principle of Measuring System: Incremental
  • LABS (PWIS) Conformity: VDMA24364 Zone III
  • Note: Materials RoHS-compliant


Product

Manufacturer Material ID -
ELGA-TB-KF-70-300-0H
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251511
Festo

Availability On Request

£1,483.51
