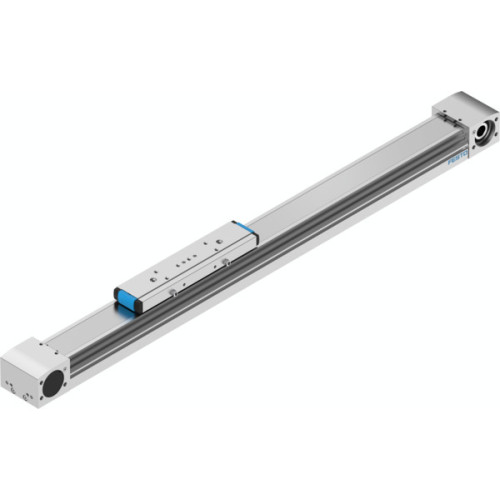

ELGA-TB-KF-70-500-0H Toothed belt axis

Manufacturer's No: ELGA-TB-KF-70-500-0H     Manufacturer: Festo
ELGA-TB-KF-70-500-0H Toothed belt axis

Availability On Request

£1,596.00
  • Type: Toothed belt axis ELGA-TB-KF-70-500-0H
  • Design: Electromechanical linear axis with toothed belt
  • Guide: Recirculating ball bearing guide
  • Drive Pinion: Effective diameter 28.65 mm
  • Working Stroke: 500 mm
  • Max. Speed: 5 m/s
  • Max. Acceleration: 50 m/s²
  • Repetition Accuracy: ±0.08 mm
  • Max. Drive Torque: 5.02 Nm
  • Max. Force: Fy 1500 N, Fz 1850 N

Read more

  • Max. Moment: Mx 16 Nm, My 132 Nm, Mz 132 Nm
  • Max. Feed Force: Fx 350 N
  • Material: Wrought aluminum alloy, anodized, stainless steel components
  • RoHS-compliant materials
  • Weight: Slide 900 kg, Additional slide 740 kg
  • Reference Service Life: 5000 km
  • Ambient Temperature: -10°C to 60°C
  • Degree of Protection: IP40
  • LABS (PWIS) Conformity: VDMA24364 Zone III
  • Mass Moment of Inertia, Feed Constant, and Dynamic/Static Deflection values provided


Product

Manufacturer Material ID -
ELGA-TB-KF-70-500-0H
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251511
Festo

Availability On Request

£1,596.00
