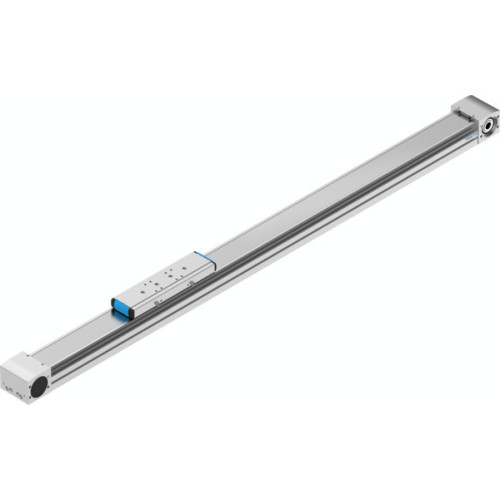

ELGA-TB-KF-80-1000-0H Toothed belt axis

Manufacturer's No: ELGA-TB-KF-80-1000-0H     Manufacturer: Festo
ELGA-TB-KF-80-1000-0H Toothed belt axis

Availability On Request

£2,130.33
  • Type: Toothed belt axis ELGA-TB-KF-80-1000-0H
  • Design: Electromechanical linear axis with toothed belt
  • Guide: Recirculating ball bearing guide
  • Motor Type: Stepper motor, Servo motor
  • Drive Pinion Diameter: 39.79 mm
  • Working Stroke: 1000 mm
  • Size: 80
  • Toothed Belt Pitch: 5 mm
  • Max. Acceleration: 50 m/s²
  • Max. Speed: 5 m/s

Read more

  • Repetition Accuracy: ±0.08 mm
  • Duty Cycle: 100%
  • LABS (PWIS) Conformity: VDMA24364 zone III
  • IP Protection: IP40
  • Ambient Temperature: -10°C to 60°C
  • Max. Drive Torque: 15.92 Nm
  • Max. Forces: Fy 2500 N, Fz 3050 N
  • Max. Moments: Mx 36 Nm, My 228 Nm, Mz 228 Nm
  • Max. Feed Force: Fx 800 N
  • Frictional Torque: 1 Nm
  • Mass Moment of Inertia: It 159250 Y12, JH 0.93 kgm², JL 3.96 kgm², JO 9.82 kgm², JW 7.61 kgm²
  • Feed Constant: 125 Y13
  • Reference Service Life: 5000 km
  • Weight: Slide 1900 kg, Additional Slide 1530 kg
  • Material: Wrought aluminium alloy, Anodised, Stainless steel, High-alloy stainless steel, Polychloroprene with glass filament and nylon coating
  • Deflection: Dynamic 0.05% of axis length (max. 0.5 mm), Static 0.1% of axis length


Product

Manufacturer Material ID -
ELGA-TB-KF-80-1000-0H
Net Weight -
10.70kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251600
Festo

Availability On Request

£2,130.33
Sign in or Register for customer prices.
