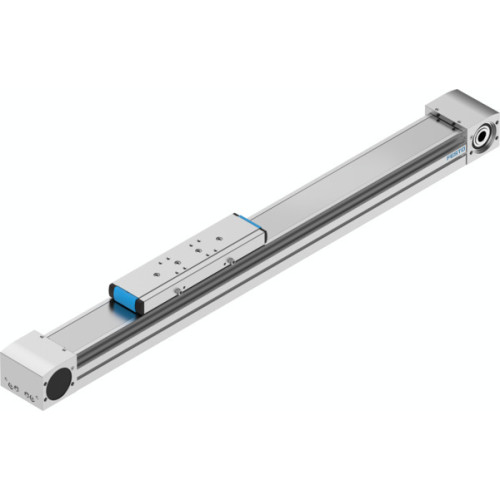

ELGA-TB-KF-80-500-0H Toothed belt axis

Manufacturer's No: ELGA-TB-KF-80-500-0H     Manufacturer: Festo
ELGA-TB-KF-80-500-0H Toothed belt axis

Availability On Request

£1,849.10
  • Type: Toothed belt axis ELGA-TB-KF-80-500-0H
  • Design: Electromechanical linear axis with toothed belt
  • Drive Pinion: Effective diameter 39.79 mm
  • Working Stroke: 500 mm
  • Size: 80
  • Max. Acceleration: 50 m/s²
  • Max. Speed: 5 m/s
  • Repetition Accuracy: ±0.08 mm
  • Max. Drive Torque: 15.92 Nm
  • Max. Force:
    • Fy: 2500 N
    • Fz: 3050 N

Read more

  • Max. Moments:
    • Mx: 36 Nm
    • My: 228 Nm
    • Mz: 228 Nm
  • Max. Feed Force: 800 N
  • Material:
    • Profile: Wrought aluminium alloy, anodised
    • Cover Tape: Stainless steel strip
    • Drive Cover: Wrought aluminium alloy, anodised
    • Guide Slide: Stainless steel
    • Guide Rail: Stainless steel
    • Pulleys: High-alloy stainless steel
    • Slide: Wrought aluminium alloy, anodised
    • Toothed Belt Clamping Piece: Stainless steel casting
    • Toothed Belt: Polychloroprene with glass filament and nylon coating
  • Environmental:
    • Ambient Temperature: -10°C to 60°C
  • Protection: IP40
  • Compliance: RoHS
  • Weight:
    • Slide: 1900 kg
    • Additional Slide: 1530 kg
    • Basic Weight for 0 mm Stroke: 4700 kg
    • Additional Weight per 10 mm Stroke: 51 kg
  • Service Life: 5000 km
  • Note: LABS (PWIS) conformity: VDMA24364 zone III


Product

Manufacturer Material ID -
ELGA-TB-KF-80-500-0H
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251511
