ELGA-TB-KF-80-800-0H Toothed belt axis

Manufacturer's No: ELGA-TB-KF-80-800-0H     Manufacturer: Festo

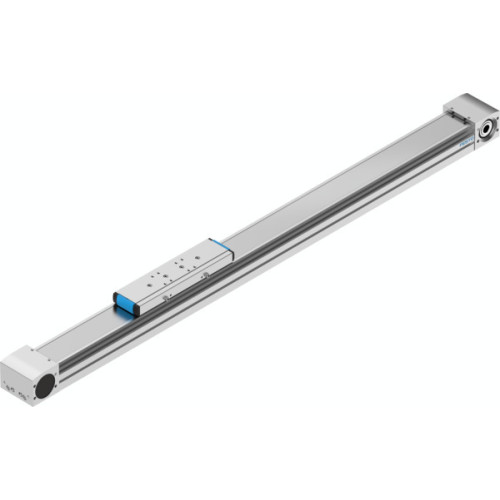

ELGA-TB-KF-80-800-0H Toothed belt axis

Availability On Request

£2,017.86
  • Toothed belt axis ELGA-TB-KF-80-800-0H
  • Effective diameter of drive pinion: 39.79 mm
  • Working stroke: 800 mm
  • Size: 80
  • Toothed-belt pitch: 5 mm
  • Max. acceleration: 50 m/s²
  • Max. speed: 5 m/s
  • Repetition accuracy: ±0.08 mm
  • Max. drive torque: 15.92 Nm
  • Max. force Fy: 2500 N

Read more

  • Max. force Fz: 3050 N
  • Max. moment Mx: 36 Nm
  • Max. moment My: 228 Nm
  • Max. moment Mz: 228 Nm
  • Distance between slide surface and guide centre: 50 mm
  • Max. feed force Fx: 800 N
  • Frictional torque independent of load: 1 Nm
  • Torsional mass moment of inertia It: 159250 mm^4
  • Mass moment of inertia JH per metre of stroke: 0.93 kgm²
  • Material profile: Wrought aluminium alloy, Anodised
  • Material cover tape: Stainless steel strip
  • Material drive cover: Wrought aluminium alloy, Anodised
  • Material guide slide: Stainless steel
  • Material guide rail: Stainless steel
  • Material pulleys: High-alloy stainless steel
  • Material slide: Wrought aluminium alloy, Anodised
  • Material toothed belt clamping piece: Stainless steel casting
  • Material toothed belt: Polychloroprene with glass filament and nylon coating
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Degree of protection: IP40
  • Ambient temperature: -10°C to 60°C
  • Reference service life: 5000 km
  • Weight of slide: 1900 kg
  • Weight of additional slide: 1530 kg
  • Basic weight for 0 mm stroke: 4700 kg
  • Additional weight per 10 mm stroke: 51 kg
  • Dynamic deflection (moving load): 0.05% of the axis length, max. 0.5 mm
  • Static deflection (load in standstill): 0.1% of the axis length
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
ELGA-TB-KF-80-800-0H
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
31251511
