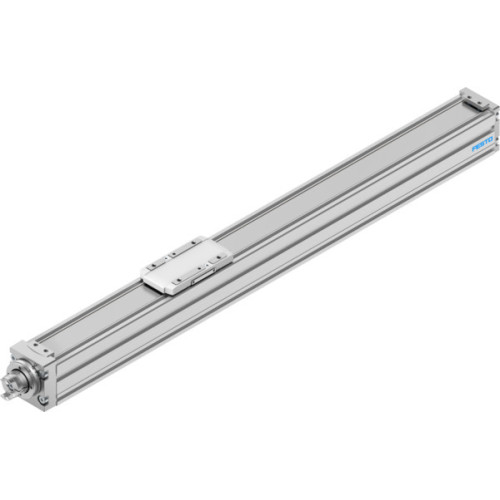

ELGC-BS-KF-32-300-8P Ball screw axis

Manufacturer's No: ELGC-BS-KF-32-300-8P     Manufacturer: Festo
ELGC-BS-KF-32-300-8P Ball screw axis

Availability On Request

£693.26
  • Product: ELGC-BS-KF-32-300-8P Ball screw axis
  • Working stroke: 300 mm
  • Size: 32
  • Spindle diameter: 8 mm
  • Reversing backlash theoretical: 150 mm
  • Spindle pitch: 8 Y13
  • Max. rotational speed: 4500 PMI
  • Max. speed: 0.6 m/s
  • Max. acceleration: 15 m/s²
  • Repetition accuracy: ±0.015 mm

Read more

  • Max. force Fy: 356 N
  • Max. force Fz: 356 N
  • Max. moment Mx: 1.3 Nm
  • Max. moment My: 1.1 Nm
  • Max. moment Mz: 1.1 Nm
  • Mass moment of inertia JH per metre of stroke: 0.02218 kgm²
  • Reference service life: 5000 km
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Ambient temperature: 0°C to 50°C
  • Degree of protection: IP40
  • Material: Anodised wrought aluminium alloy, steel, high-alloy stainless steel, die-cast aluminium
  • Design: Electromechanical linear axis with ball screw
  • Type of motor: Stepper motor, servo motor
  • Position detection: Via proximity switch, inductive sensors
  • Mounting position: Optional
  • Interface code, actuator: V25
  • Maintenance interval: Life-time lubrication
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Suitability for the production of Li-ion batteries: Product corresponds to internal product definition from Festo for use in battery production
  • Note: RoHS-compliant materials used


Product

Manufacturer Material ID -
ELGC-BS-KF-32-300-8P
Net Weight -
0.79kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
CN
UNSPSC -
31251600
Festo

Availability On Request

£693.26
