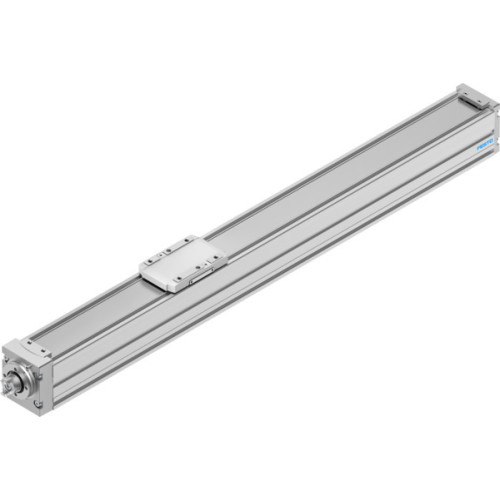

ELGC-BS-KF-45-600-10P Ball screw axis

Manufacturer's No: ELGC-BS-KF-45-600-10P     Manufacturer: Festo
ELGC-BS-KF-45-600-10P Ball screw axis

Availability Back Order

£717.74
  • Product: ELGC-BS-KF-45-600-10P Ball screw axis
  • Working Stroke: 600 mm
  • Size: 45
  • Reversing Backlash Theoretical: 150 mm
  • Spindle Diameter: 10 mm
  • Spindle Pitch: 10 Y13
  • Design: Electromechanical linear axis with ball screw
  • Motor Type: Stepper motor, Servo motor
  • Spindle Type: Ball screw drive
  • Position Detection: Via proximity switch, inductive sensors

Read more

  • Max. Acceleration: 15 m/s²
  • Max. Rotational Speed: 3600 RPM
  • Max. Speed: 0.6 m/s
  • Repetition Accuracy: ±0.015 mm
  • Duty Cycle: 100%
  • Cleanroom Class: Class 7 according to ISO 14644-1
  • Storage Temperature: -20°C to 60°C
  • Degree of Protection: IP40
  • Ambient Temperature: 0°C to 50°C
  • Impact Energy in End Positions: 0.0005 MJ
  • 2nd Moment of Area Iy: 140000 Y12, Iz: 170000 Y12
  • Idle Torque at vmax: 0.12 Nm, at vmin: 0.032 Nm
  • Max. Force Fy: 880 N, Fz: 880 N, Fy total axis: 300 N, Fz total axis: 600 N
  • Max. Moment Mx: 5.5 Nm, My: 4.7 Nm, Mz: 4.7 Nm, Mx total axis: 5.5 Nm, My total axis: 4.7 Nm, Mz total axis: 4.7 Nm
  • Distance Between Slide Surface and Guide Centre: 42.8 mm
  • Max. Radial Force at Drive Shaft: 180 N
  • Max. Feed Force Fx: 100 N
  • Torsional Mass Moment of Inertia It: 8500 Y12
  • Mass Moment of Inertia JH per Metre of Stroke: 0.05056 kgm²
  • Mass Moment of Inertia JL per kg of Working Load: 0.02533 kgm²
  • Mass Moment of Inertia JO: 0.0082 kgm²
  • Feed Constant: 10 Y13
  • Reference Service Life: 5000 km
  • Maintenance Interval: Life-time lubrication
  • Moving Mass: 220 g, Additional Weight per 10 mm Stroke: 36 g
  • Dynamic Deflection (Moving Load): 0.05% of the axis length, max. 0.5 mm
  • Static Deflection (Load in Standstill): 0.1% of the axis length
  • Interface Code, Actuator: V32
  • Material: End Cap - Painted die-cast aluminium, Profile - Anodised wrought aluminium alloy, Cover Tape - High-alloy stainless steel, Drive Cover - Painted die-cast aluminium, Guide Slide & Rail - Steel, Slide - Die-cast aluminium, Spindle Nut & Spindle - Steel
  • Note on Materials: RoHS-compliant

Accessories

ZBS-4 Centring pin

Product Code - 562959
Price £1.59
Back Order


Product

Manufacturer Material ID -
ELGC-BS-KF-45-600-10P
Net Weight -
2.40kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
CN
