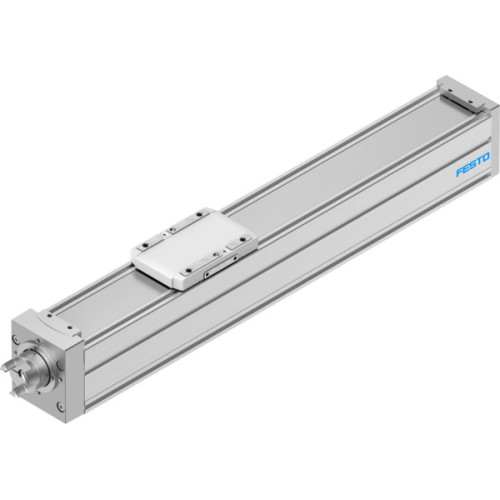

ELGC-BS-KF-60-200-12P Ball screw axis

Manufacturer's No: ELGC-BS-KF-60-200-12P     Manufacturer: Festo
ELGC-BS-KF-60-200-12P Ball screw axis

Availability Back Order

£696.81
  • Product: ELGC-BS-KF-60-200-12P Ball screw axis
  • Working Stroke: 200 mm
  • Size: 60
  • Reversing Backlash Theoretical: 150 mm
  • Spindle Diameter: 12 mm
  • Spindle Pitch: 12 Y13
  • Design: Electromechanical linear axis with ball screw
  • Motor Type: Stepper and Servo motor
  • Spindle Type: Ball screw drive
  • Position Detection: Via proximity switch and inductive sensors

Read more

  • Max. Acceleration: 15 m/s²
  • Max. Rotational Speed: 4000 RPM
  • Max. Speed: 0.8 m/s
  • Repetition Accuracy: ±0.01 mm
  • Duty Cycle: 100%
  • Cleanroom Class: Class 7 according to ISO 14644-1
  • Storage Temperature: -20°C to 60°C
  • Degree of Protection: IP40
  • Ambient Temperature: 0°C to 50°C
  • Impact Energy in End Positions: 0.001 MJ
  • Idle Torque at Vmax: 0.246 Nm, at Vmin: 0.042 Nm
  • Max. Force: Fy: 3641 N, Fz: 3641 N
  • Max. Force Total Axis: Fy: 600 N, Fz: 1800 N
  • Max. Moment: Mx: 29.1 Nm, My: 31.8 Nm, Mz: 31.8 Nm
  • Max. Moment Total Axis: Mx: 29.1 Nm, My: 31.8 Nm, Mz: 31.8 Nm
  • Distance Between Slide Surface and Guide Centre: 54.6 mm
  • Max. Radial Force at Drive Shaft: 230 N
  • Max. Feed Force: 200 N
  • Torsional Mass Moment of Inertia: 29800 Y12
  • Reference Service Life: 5000 km
  • Maintenance Interval: Life-time lubrication
  • Moving Mass: 525 g
  • Additional Weight per 10 mm Stroke: 51 g
  • Dynamic Deflection: 0.05% of the axis length, max. 0.5 mm
  • Static Deflection: 0.1% of the axis length
  • Material: End Cap - Painted die-cast aluminium, Profile - Anodised wrought aluminium alloy, Cover Tape - High-alloy stainless steel, Drive Cover - Painted die-cast aluminium, Guide Slide & Rail - Steel, Slide - Die-cast aluminium, Spindle Nut & Spindle - Steel
  • Material Note: RoHS-compliant

Accessories

ZBH-5-B Centring sleeve

Product Code - 8146543
Price £1.32
Back Order


Product

Manufacturer Material ID -
ELGC-BS-KF-60-200-12P
Net Weight -
3.06kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
CN
UNSPSC -
31251600
