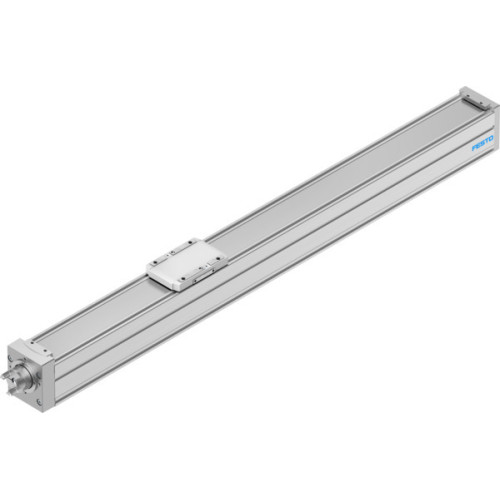

ELGC-BS-KF-60-800-12P Ball screw axis

Manufacturer's No: ELGC-BS-KF-60-800-12P     Manufacturer: Festo
ELGC-BS-KF-60-800-12P Ball screw axis

Availability On Request

£861.45
  • Product: ELGC-BS-KF-60-800-12P Ball screw axis
  • Working Stroke: 800 mm
  • Spindle Diameter: 12 mm
  • Spindle Pitch: 12 Y13
  • Max. Speed: 0.8 m/s
  • Max. Acceleration: 15 m/s²
  • Repetition Accuracy: ±0.01 mm
  • Max. Rotational Speed: 4000 PMI
  • Design: Electromechanical linear axis with ball screw
  • Motor Type: Stepper and Servo

Read more

  • Position Detection: Via proximity switch and inductive sensors
  • Cleanroom Class: Class 7 according to ISO 14644-1
  • Storage Temperature: -20°C to 60°C
  • Ambient Temperature: 0°C to 50°C
  • Degree of Protection: IP40
  • Max. Force: Fy 3641 N, Fz 3641 N
  • Max. Force Total Axis: Fy 600 N, Fz 1800 N
  • Max. Moment: Mx 29.1 Nm, My 31.8 Nm, Mz 31.8 Nm
  • Max. Moment Total Axis: Mx 29.1 Nm, My 31.8 Nm, Mz 31.8 Nm
  • Distance Between Slide Surface and Guide Centre: 54.6 mm
  • Max. Radial Force at Drive Shaft: 230 N
  • Max. Feed Force: Fx 200 N
  • Reference Service Life: 5000 km
  • Moving Mass: 525 g
  • Dynamic Deflection: 0.05% of the axis length, max. 0.5 mm
  • Static Deflection: 0.1% of the axis length
  • Material: Painted die-cast aluminum, Anodized wrought aluminum alloy, High-alloy stainless steel, Steel
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ELGC-BS-KF-60-800-12P
Net Weight -
5.70kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
CN
UNSPSC -
31251600
