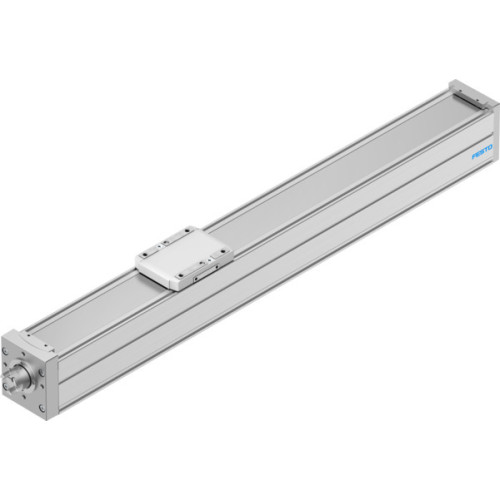

ELGC-BS-KF-80-1000-16P Ball screw axis

Manufacturer's No: ELGC-BS-KF-80-1000-16P     Manufacturer: Festo
ELGC-BS-KF-80-1000-16P Ball screw axis

Availability Back Order

£1,010.29
  • ELGC-BS-KF-80-1000-16P Ball screw axis
  • Working stroke: 1000 mm
  • Size: 80
  • Reversing backlash theoretical: 150 mm
  • Spindle diameter: 16 mm
  • Spindle pitch: 16 Y13
  • Design: Electromechanical linear axis with ball screw
  • Motor type: Stepper and servo motor
  • Spindle type: Ball screw drive
  • Position detection: Via proximity switch and inductive sensors

Read more

  • Max. acceleration: 15 m/s²
  • Max. rotational speed: 3750 RPM
  • Max. speed: 1 m/s
  • Repetition accuracy: ±0.01 mm
  • Duty cycle: 100%
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Impact energy in end positions: 0.002 MJ
  • 2nd moment of area Iy: 1370000 Y12, Iz: 1660000 Y12
  • Idle torque at vmax: 0.396 Nm, at vmin: 0.095 Nm
  • Max. force Fy: 5543 N, Fz: 5543 N, total axis: Fy 900 N, Fz 2700 N
  • Max. moment Mx: 59.8 Nm, My: 56.2 Nm, Mz: 56.2 Nm, total axis: Mx 59.8 Nm, My 56.2 Nm, Mz 56.2 Nm
  • Fy at theoretical life value of 100 km: 20400 N, Fz: 20400 N
  • Mx at theoretical life value of 100 km: 220 Nm, My: 207 Nm, Mz: 207 Nm
  • Distance between slide surface and guide centre: 72.5 mm
  • Max. radial force at drive shaft: 500 N
  • Max. feed force Fx: 350 N
  • Torsional mass moment of inertia It: 90500 Y12
  • Mass moment of inertia JH per metre of stroke: 0.35257 kgm²
  • Mass moment of inertia JL per kg of working load: 0.064846 kgm²
  • Mass moment of inertia JO: 0.07856 kgm²
  • Feed constant: 16 Y13
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 978 g, additional weight per 10 mm stroke: 88 g
  • Dynamic deflection (moving load): 0.05% of the axis length, max. 0.5 mm
  • Static deflection (load in standstill): 0.1% of the axis length
  • Interface code, actuator: T46
  • Material: End cap - Painted die-cast aluminium, profile - Anodised wrought aluminium alloy, cover tape - High-alloy stainless steel, drive cover - Painted die-cast aluminium, guide slide and rail - Steel, slide - Die-cast aluminium, spindle nut and spindle - Steel
  • RoHS-compliant materials

Accessories

ZBH-7-B Centring sleeve

Product Code - 8146544
Price £1.32
Back Order


Product

Manufacturer Material ID -
ELGC-BS-KF-80-1000-16P
Net Weight -
11.40kg
