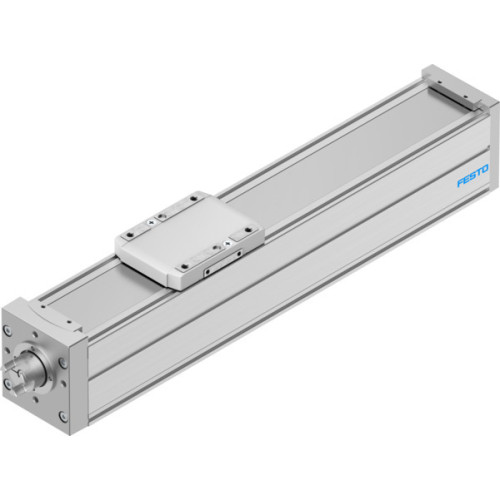

ELGC-BS-KF-80-200-16P Ball screw axis

Manufacturer's No: ELGC-BS-KF-80-200-16P     Manufacturer: Festo
ELGC-BS-KF-80-200-16P Ball screw axis

Availability On Request

£742.92
  • ELGC-BS-KF-80-200-16P Ball screw axis
  • Working stroke: 200 mm
  • Size: 80
  • Reversing backlash theoretical: 150 mm
  • Spindle diameter: 16 mm
  • Spindle pitch: 16 Y13
  • Design: Electromechanical linear axis with ball screw
  • Motor type: Stepper and servo motor
  • Spindle type: Ball screw drive
  • Position detection: Via proximity switch and inductive sensors

Read more

  • Max. acceleration: 15 m/s²
  • Max. rotational speed: 3750 RPM
  • Max. speed: 1 m/s
  • Repetition accuracy: ±0.01 mm
  • Duty cycle: 100%
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Max. force: Fy 5543 N, Fz 5543 N, Fy total axis 900 N, Fz total axis 2700 N
  • Max. moment: Mx 59.8 Nm, My 56.2 Nm, Mz 56.2 Nm, Mx total axis 59.8 Nm, My total axis 56.2 Nm, Mz total axis 56.2 Nm
  • Max. radial force at drive shaft: 500 N
  • Max. feed force: 350 N
  • Reference service life: 5000 km
  • Moving mass: 978 g
  • Dynamic deflection: 0.05% of the axis length, max. 0.5 mm
  • Static deflection: 0.1% of the axis length
  • Material: End cap - Painted die-cast aluminum, Profile - Anodized wrought aluminum alloy, Cover tape - High-alloy stainless steel, Drive cover - Painted die-cast aluminum, Guide slide and rail - Steel, Slide - Die-cast aluminum, Spindle nut and spindle - Steel
  • RoHS-compliant materials
