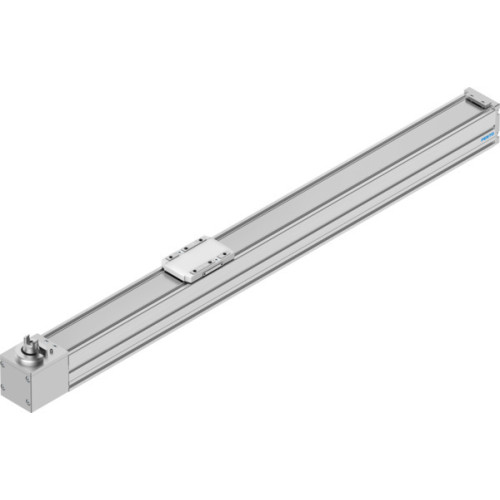

ELGC-TB-KF-45-1200 Toothed belt axis

Manufacturer's No: ELGC-TB-KF-45-1200     Manufacturer: Festo
ELGC-TB-KF-45-1200 Toothed belt axis

Availability Back Order

£687.69
  • Type: Toothed belt axis
  • Effective diameter of drive pinion: 19.1 mm
  • Working stroke: 1200 mm
  • Size: 45
  • Toothed-belt pitch: 2 mm
  • Design: Electromechanical linear axis with toothed belt
  • Motor type options: Stepper motor, Servo motor
  • Position detection: Via proximity switch, inductive sensors
  • Max. acceleration: 15 m/s²
  • Max. speed: 1.2 m/s

Read more

  • Repetition accuracy: ±0.1 mm
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C
  • Max. drive torque: 0.716 Nm
  • Max. force: Fy 880 N, Fz 880 N
  • Max. force total axis: Fy 300 N, Fz 600 N
  • Max. idle running transfer resistance: 7.8 N
  • Max. moments: Mx 5.5 Nm, My 4.7 Nm, Mz 4.7 Nm
  • Moments total axis: Mx 5.5 Nm, My 4.7 Nm, Mz 4.7 Nm
  • Distance between slide surface and guide centre: 42.8 mm
  • Max. feed force: 75 N
  • Frictional torque independent of load: 0.075 Nm
  • Mass moment of inertia: It 8500 Y12, JH 0.0281 kgm², JL 0.9119 kgm², JO 0.1862 kgm²
  • Feed constant: 60 Y13
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Moving mass: 169 g, Slide weight: 55 g, Product weight: 3510 g
  • Material: End cap - Painted die-cast aluminium, Profile - Anodised wrought aluminium alloy, Cover tape - Stainless steel strip, Drive cover - Painted die-cast aluminium, Guide slide & rail - Steel, Pulleys - High-alloy stainless steel, Slide - Die-cast aluminium, Toothed belt - Polychloroprene with glass fibre

Accessories

ZBS-4 Centring pin

Product Code - 562959
Price £1.59
Back Order


Product

Manufacturer Material ID -
ELGC-TB-KF-45-1200
Net Weight -
6.80kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
CN
UNSPSC -
31251600
